Description

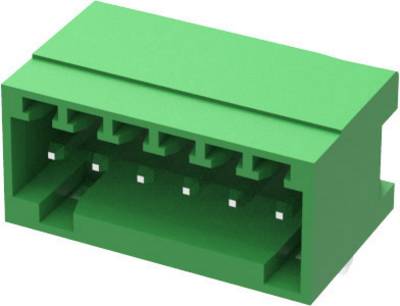

15EDGRC-2.5-02P-14-00AH Degson Connector Pluggable terminal blocks^2 Contact spacing: 2.50 mm 90Deg Green RoHS
Technical data
Connector type:Socket strip, right angle
Connectors:wire-to-board
Series:15EDGRC
Features:PCB-SMD , encodable
CS:2.50 mm
Pins per row:2
Total number of pins:2
Pin diameter:0.80 mm
Pin shape:Square
Nominal current:1.50 A
Content:1 pc(s)
Colour:Green
Height:8.10 mm
Industrial packaging:No
Connection:Print
Connector contact surface:Tin plated
Board contact surface:Tin plated
Connector orientation:Parallel (to the PCB)
Nominal voltage:150 V
Insulation material:PA 66 UL94V-0
No. of rows:1
Contact material:Copper alloy
Case material:PA 66 UL94V-0
RoHS-compliant:Yes
Max. temperature:+105 C
Min. temperature:-40 C
Product type:Socket enclosure – PCB
Manufacturer:Degson
Datasheet:15EDGRC-2.5-XXP-1Y-00AH.pdf
