Description

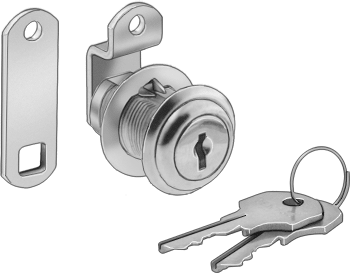

Use these locks in a 3/4″ dia. through hole, which is the most common through-hole size. Choose them if you need several locks that open with the same key. Each lock comes with a straight cam and a reversible offset cam to accommodate different latching distances.
Material:Nickel-Plated Zinc
Appearance:Polished
Turn Direction:Quarter-Turn Counterclockwise to Open
For Maximum Thickness:15/64″
Latching Distance:9/32″, 5/8″, 31/32″
Key Number:C413A
For Through Hole Diameter:3/4″
Head Diameter:7/8″
Straight Cam:
Length:1 1/2″
Width:5/8″
Offset Cam:
Length:1 1/8″
Width:5/8″
Mounting Style:Through Hole
Mounting Fasteners Included:Yes
Opens With:Key
Keying:Keyed Alike
Number of Keys Included:2
For Use On:Metal, Wood
Includes:One Straight Cam, One Reversible Offset Cam
Cam Latch Type:Keyed
Cam Style:Straight, Reversible Offset
Manufacturer Part Number: 1770A12
