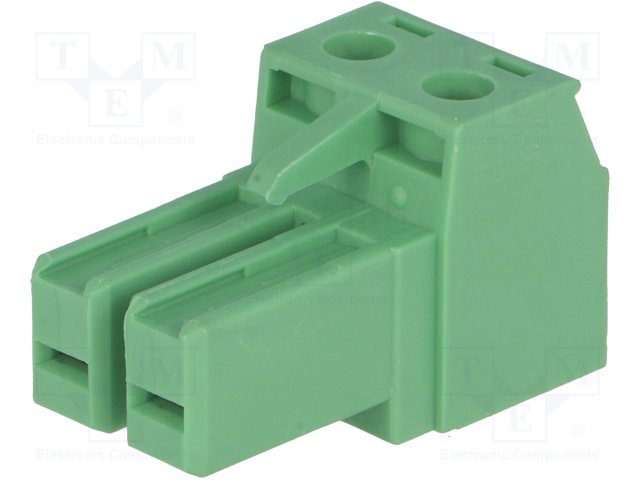

Phoenix Contact 1804904 Non-Fused Trm Blk; 2 Way/Pole; Screw DownTerminals; 30 to 10 AWG Cable Mount; Nylon
Specifications
Manufacturer: Phoenix Contact
Product Category: Pluggable Terminal Blocks
RoHS: Details
Product: Plugs
Number of Positions: 2 Position
Pitch: 7.62 mm
Connection Method: Screw
Current Rating: 20 A
Voltage Rating: 400 V
Wire Gauge Range: 24 AWG to 10 AWG
Series: PC
Packaging: Bulk
Contact Plating: Tin
Housing Material: Polyamide (PA)
Length: 7 mm
Brand: Phoenix Contact
Flammability Rating: UL 94 V-0
Factory Pack Quantity: 50
Tradename: COMBICON Power
Wire Gauge Max: 10 AWG
Wire Gauge Min: 24 AWG
Part # Aliases: PC 4/ 2-ST-7,62 PC42ST762
Unit Weight: 0.293444 oz
Manufacturer:Phoenix Contact
Datasheet:1804904.pdf
