Description
Technical Attributes
Lens Dimensions 1.2 x 1.6 x 0.5 mm
Intensity 112(Max)|72(Max) mcd
Package Dimensions 1.9 x 1.6 x 0.8 mm
Peak Wavelength 591|575 nm
Dominant Wavelength 589|573 nm
Maximum Forward Current 25 mA
Screening Level Industrial
Viewing Angle 130
Lens Appearance Colorless Non Diffused
Mounting Orientation Top Mount
Maximum Power Dissipation 60 mW
Type Chip LED
Mounting Surface Mount
Category Chip LED
LED Material AlGaInP
Lens Shape Type Rectangular
Number of LEDs 2
Maximum Forward Voltage per Color 2.4 V
Reverse Voltage 5 V
Operating Temperature -40 to 85C
Maximum Processing Temperature 260C
Color Yellow|Yellow Green

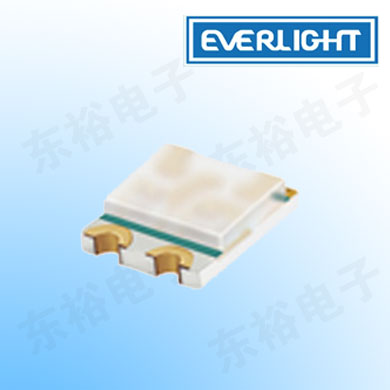

Manufacturer Part Number: 19-22/Y2G6C-A14/2T
Everlight
