Description

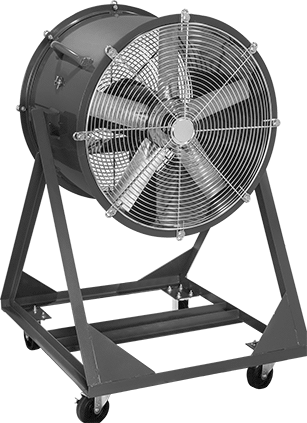

Often used to cool warehouse aisles and production lines, these fans generate a stream of air that travels farther than air from conventional fans. They have a motor that is UL listed for Class I, Group D; Class II, Groups F and G hazardous environments. All fans have a totally enclosed motor enclosure, which can be used in dirty, dusty, and damp environments. Fans with wheels can be rolled into place before they are hardwired. They do not allow for movement once the unit is in use.
Blade Diameter:24″
Airflow:7,800 cfm
Volume:78 dB @ 15 ft.
Motor Speed:1,750 rpm
Number of Speeds:1
Power:1 hp
Voltage:120/230V AC
Electrical Phase:Single
Current:14.0/6.9 A
Height:45″
Width:30″
Depth:32″
Power Source:Electric
Electrical Connection:Hardwire
Fan Head Movement:Non-Oscillating
Drive Type:Direct
Motor Enclosure Type:Totally Enclosed
Environment:Hazardous Location
Housing Material:Steel
Blade Material:Aluminum
Guard Material:Steel
Mobility:Stationary
Mount Type:Freestanding
Mounting Location:Floor
Features:Wheels
Specifications Met:UL Listed Class I, Group D; UL Listed Class II, Group F; UL Listed Class II, Group G
Manufacturer: Electronic Components
MFG Part #: 1903K58
