Description

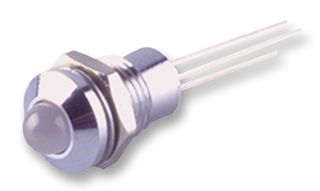

19121054 CML Innovative Technologies LED,indicator,8mm mount,black,prominent,tri colour red/green/yellow
The 19121054 is a panel-mount red/green/yellow Multi-colour Indicator with black chrome bezel and maximum 30mA current at 2.1/2.2/2.2VDC voltage. Due to production tolerances, colour temperature variations may be detected within the individual consignments. The plastic (polycarbonate) is limited resistant against chemicals.
Specifications
Voltage Rating 3 V
Light Output Colour Red/Green/Yellow
Mounting Hole Size 8mm
Lamp Type LED
Termination Type Tab
Bezel Style Prominent
Bezel Colour Black Chrome
Current Rating 15 (Yellow) mA, 30 (Green) mA, 30 (Red) mA
Intensity 10 (Red), 20 (Green), 20 (Yellow) mcd
Length 23 mm
Manufacturer Part Number: 19121054
