Description
1N4148-TP Micro Commercial Components (MCC)
Diodes – General Purpose, Power, Switching 100V Io/150mA
RoHS

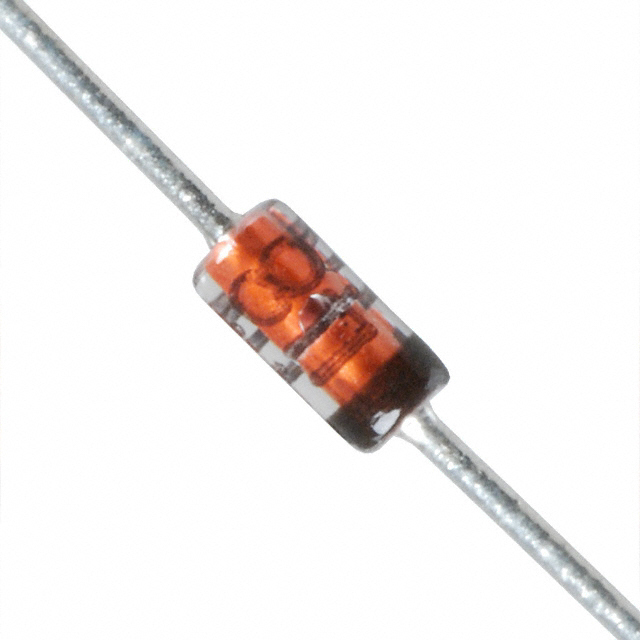

The 1N4148-TP is a high speed switching diode with 500 mW power dissipation.
Features:
High Reliability
Low Current Leakage
Metalurgically Bonded Construction
Moisture Sensitivity Level 1
Lead Free Finish/Rohs Compliant
Operating Temperature: -65 to +175 °C
Specifications
Manufacturer: Micro Commercial Components (MCC)
Product Category: Diodes – General Purpose, Power, Switching
RoHS: RoHS Compliant
Product: Switching Diodes
Mounting Style: Through Hole
Package / Case: DO-35
Peak Reverse Voltage: 75 V
Max Surge Current: 2 A
If – Forward Current: 0.15 A
Configuration: Single
Recovery Time: 4 ns
Vf – Forward Voltage: 1 V
Ir – Reverse Current: 5 uA
Series: 1N4148
Packaging: Reel
Brand: Micro Commercial Components (MCC)
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: – 65 C
Factory Pack Quantity: 10000
Unit Weight: 0.004833 oz
Manufacturer Part Number: 1N4148-TP
Micro Commercial Components (MCC)
