Description

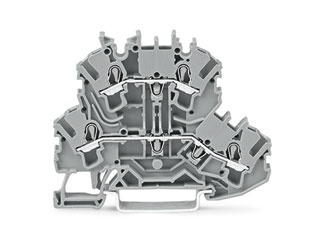

WAGO Innovative Connections 2002-2201 2 TERMINAL BLOCK, DIN RAIL, 2 POSITION, 22-12AWG, No. of Positions:2, Rated Voltage:500V, Rated Current:24A, Wire Size AWG Min:22AWG, Wire Size AWG Max:12AWG, Conductor Area CSA:4mm , Wire Connection Method:Clamp, No. of Levels:2 , RoHS
^
^Product Overview
^
^ DIN 35 rail-mounted double deck terminal block with CAGE CLAMP technology
^ Up to 30% smaller than other terminals on the market
^ Significant cost savings through the reduction of panel space, smaller enclosures & junction boxes
^ Push-in wire termination for faster installation
^
^Product Specifications
^
^ Conductor Area CSA: 4mm2
^ Connector Type: DIN Terminal Block
^ Contact Material: Steel
^ No. of Levels: 2
^ No. of Positions: 2
^ Rated Current: 24A
^ Rated Voltage: 500V
^ SVHC: No SVHC (15-Jun-2015)
^ Series: TOPJOB
^ Wire Connection Method: Clamp
^ Wire Size AWG Max: 12AWG
^ Wire Size AWG Min: 22AWG
Manufacturer:Wago
Datasheet:Wago/2002-2201.pdf
