Description

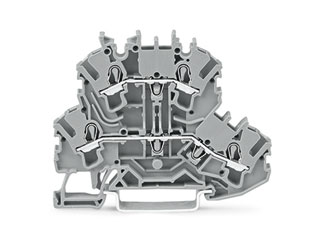

2002-2202/099-000 WAGO Double-deck terminal block; Through/through terminal block; N/L; with end plate; without marker carrier; gray housing
| Name | Value | Unit |
| Packaging type | BOX | |
| Ratings per | IEC/EN 60947-7-1 | |
| Rated voltage (III / 3) [V] | 800 | V |
| Rated impulse voltage (III / 3) [kV] | 8 | kV |
| Rated current [A] | 24 | A |
| Total number of potentials | 2 | |
| Type of wiring | Front-entry wiring | |
| Number of levels | 2 | |
| Connection technology | Push-in CAGE CLAMP® | |
| Number of connection points (connection type) | 2 | |
| Actuation type | Operating tool | |
| Connectable conductor materials | Copper | |
| Nominal cross section | 2.5 mm² | |
| Solid conductor | 0.25 … 4 mm² / 22 … 12 AWG | |
| Solid conductor, push-in termination | 0.75 … 4 mm² / 18 … 12 AWG | |
| Fine-stranded conductor | 0.25 … 4 mm² / 22 … 12 AWG | |
| Fine-stranded conductor with ferrule, push-in termination, f | 0.75 mm² / 18 AWG | |
| Strip length | 10 … 12 mm / 0.39 … 0.47 Inch | |
| Number of connection points (connection type 2) | 2 | |
| Width | 6.2 mm / 0.244 Inch | |
| Height from upper-edge of DIN-35 rail | 51.7 mm / 2.035 Inch | |
| Depth | 69.7 mm / 2.744 Inch | |
| Design | horizontal | |
| Type of mounting | Carrier rail 35 x 15 | |
| Total number of connection points | 4 | |
| Potential marking | N/L | |
| Marking level | Center/side marking | |
| Color | gray | |
| Insulating material | Polyamide 66 (PA 66) | |
| Fire load [MJ] | 0.296 | MJ |
| RoHS Conformity | 1 | |
| Weight [g] | 13.203 | g |
Manufacturer:Wago
Datasheet:Wago/2002-2201_097-000.pdf
