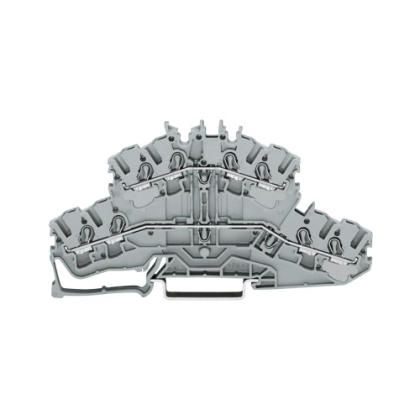

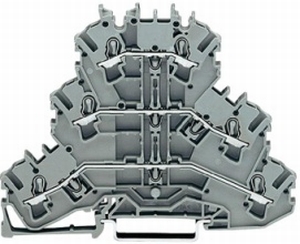

2002-4101 WAGO Terminal Block L1-L2-L3

Description

Product Overview
^2-conductor-, 3-conductor-, 4-conductor terminal blocks, double deck, triple deck terminal blocks for rated cross section from 1.5 mm (AWG 16) up to 16 mm (AWG 4).
^ Cross section to [AWG] 12 AWG
^ Cross section to [AWG] 12 AWG
^ Cross section [AWG] 22 – 22 AWG
^ Width 0.205 in
^ Cross section [mm] 0.25 – 0.25 mm
^ Strip length 0.43 in
^ Cross section to [mm] 2.5 mm
^ Height 3.303 in
^ Cross section to [mm] 4 mm
^ Depth 4.075 in
^ Width 5.2 mm
^ Measured shock voltage 8 kV
^ Weight 20.315 g
^ Current intensity EN 24 A
^ Depth 103.5 mm
^ Strip length from 10 mm
^ Strip length to 12 mm
^ Measured voltage EN 800 V
^ No. of potentials 3
^ Pollution degree 3
^ No. of connection Points 6
^ Connection method CAGE CLAMPS Connection
^ Wiring method e+f
^ Connection method CAGE CLAMPS Connection
^ Color gray
^ Wiring type Front-entry
^ Height 83.9 mm
^ Country of Origin Deutschland

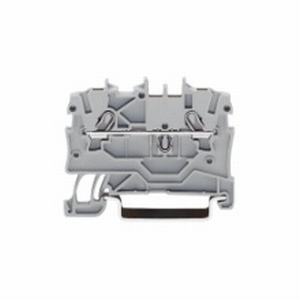

2 CONDUCTOR TERMINALS
	AWG SIZE	GRAY	ORANGE	RED	BLUE	BLACK	YELLOW	GREEN / YELLOW
	16-24	2000-1201	2000-1202	2000-1203	2000-1204	2000-1205	2000-1206	2000-1207
	14-22	2001-1202	2001-1202	2001-1203	2001-1204	2001-1205	2001-1206	2001-1207
	12-22	2002-1201	2002-1202	2002-1203	2002-1204	2002-1205	2002-1206	2002-1207
	10-20	2004-1201	2004-1202	2004-1203	2004-1204	2004-1205	2004-1206	2004-1207
	8-20	2006-1201	2006-1202	2006-1203	2006-1204	2006-1205	2006-1206	2006-1207
	6-20	2010-1201	2010-1202	2010-1203	2010-1204	2010-1205	2010-1206	2010-1207
	4-20	2016-1201	2016-1202	2016-1203	2016-1204	2016-1205	2016-1206	2016-1207

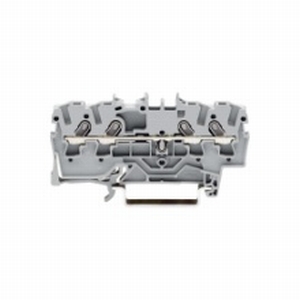

3 CONDUCTOR TERMINALS
	AWG SIZE	GRAY	ORANGE	RED	BLUE	BLACK	YELLOW	GREEN / YELLOW
	16-24	2000-1301	2000-1302	2000-1303	2000-1304	2000-1305	2000-1306	2000-1307
	14-22	2001-1301	2001-1302	2001-1303	2001-1304	2001-1305	2001-1306	2001-1307
	12-22	2002-1301	2002-1302	2002-1303	2002-1304	2002-1305	2002-1306	2002-1307
	10-20	2004-1301	2004-1302	2004-1303	2004-1304	2004-1305	2004-1306	2004-1307
	8-20	2006-1301	2006-1302		2006-1304
	6-20	2010-1301	2010-1302		2010-1304
	4-20	2016-1301	2016-1302		2016-1304

4 CONDUCTOR TERMINALS
	AWG SIZE	GRAY	ORANGE	RED	BLUE	BLACK	YELLOW	GREEN / YELLOW
	16-24	2000-1401	2000-1402	2000-1403	2000-1404	2000-1405	2000-1406	2000-1407
	14-22	2001-1402	2001-1402	2001-1403	2001-1404	2001-1405	2001-1406	2001-1407
	12-22	2002-1401	2002-1402	2002-1403	2002-1404	2002-1405	2002-1406	2002-1407
	10-20	2004-1401	2004-1402	2004-1403	2004-1404	2004-1405	2004-1406	2004-1407

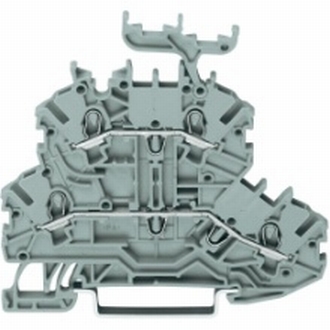

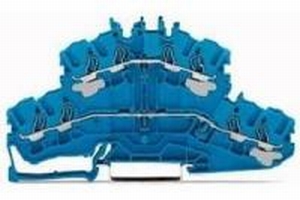

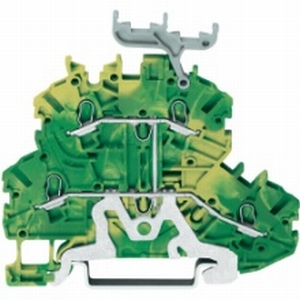

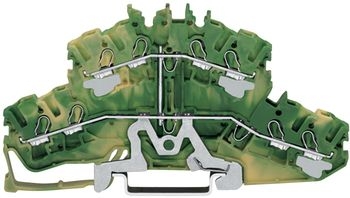

Double-Decker Terminals

2 CONDUCTOR TERMINALS
AWG SIZE	GRAY L / L	GRAY N / L	GRAY N / L	BLUE N / N	GRAY PE / N	GRAY PE / L
16-24	2000-2201	2000-2202	2000-2203	2000-2204	2000-2217	2000-2227
12-22	2002-2201	2002-2202	2002-2203	2002-2204	2002-2217	2002-2227

4 CONDUCTOR TERMINALS
AWG SIZE	GRAY L	BLUE N	GRAY L / L	GRAY N / L	GRAY L / N	BLUE N / N	GRAY PE / N	GRAY PE / L	GREEN / YELLOW
16-24	2000-2208	2000-2209
12-22	2002-2208	2002-2209	2002-2401	2002-2402	2002-2403	2002-2404	2002-2417	2002-2427	2002-2207
