Description

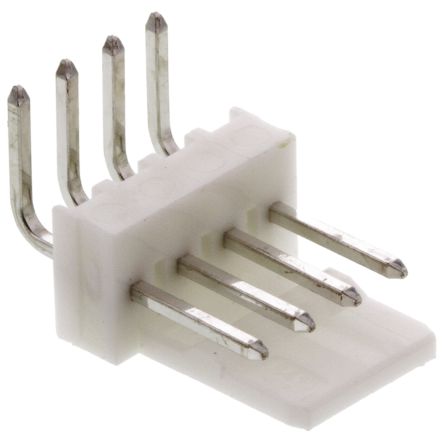

Molex 22-05-7048 KK® 254 Right Angle Wire-to-Board Header, Right Angle, with Friction Lock, 4 Circuits 1 Row, 2.54 mm Pitch, Solder, AMPMODU Mod II Series
Category PCB Headers
Series 7395
Application Signal, Wire-to-Board
Overview KK® Interconnect System – Molex
Product Name KK® 254
UPC 800753739499
Physical
Breakaway No
Circuits (Loaded) 4
Circuits (maximum) 4
Color – Resin Natural (White)
Durability (mating cycles max) 25
First Mate / Last Break No
Flammability 94V-0
Glow-Wire Compliant No
Guide to Mating Part No
Keying to Mating Part None
Lock to Mating Part Yes
Material – Metal Brass
Material – Plating Mating Tin
Material – Plating Termination Tin
Material – Resin Nylon
Net Weight 0.524/g
Number of Rows 1
Orientation Right Angle
PC Tail Length 3.80mm
PCB Locator No
PCB Retention None
PCB Thickness – Recommended 1.60mm
Packaging Type Bag
Pitch – Mating Interface 2.54mm
Pitch – Termination Interface 2.54mm
Plating min – Mating 5.080µm
Plating min – Termination 5.080µm
Polarized to Mating Part Yes
Polarized to PCB No
Shrouded No
Stackable No
Surface Mount Compatible (SMC) No
Termination Interface: Style Through Hole
Part # Alias: 22057048
Current – Maximum per Contact 4.0A
Voltage – Maximum 250V
Part Number Alias: 22057048
Manufacturer Part Number: 22-05-7048
Molex
