Description

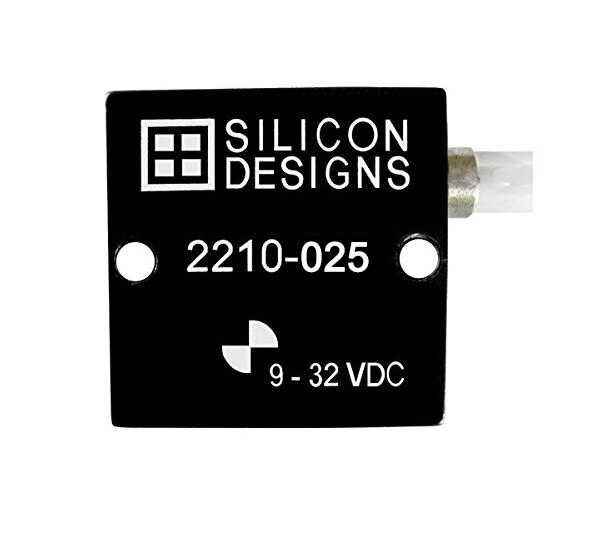

2210-025 Silicon Designs MEMS Capacitive Accelerometer Single Axis Accelerometer Module Family Model 2210 Analog Accelerometer module combines an integrated model 1210L accelerometer with high drive, low impedance buffering for measuring acceleration in commercial/industrial environments. It is tailored for zero to medium frequency instrumentation applications. The anodized aluminum case is epoxy sealed and is easily mounted via two #4 (or M3) screws. On-board regulation is provided to minimize the effects of supply voltage variation. It is relatively insensitive to temperature changes and thermal gradients. The cable’s shield is electrically connected to the case while the ground (GND) wire is isolated from the case. An optional initial calibration sheet (2210-CAL) and periodic calibration checking are also available.
Specifications
Product Category
Accelerometers
Acceleration
25 g
Frequency Range
0.0 to 1000 Hz
Measurement Axes
Single
Sensor Technology
Capacitance; MEMS
Device Category
Sensor / Transducer; Module
All of Silicon Designs high-performance, low-noise universal MEMS capacitive accelerometer modules are based around the same hermetically sealed, nitrogen-damped sensor, providing both DC (constant) and AC (vibration) response. Our custom ASICs allow us to produce a variety of accurate, reliable MEMS capacitive accelerometers, with outputs, sensitivities, and form factors to fit nearly any customer application, whether DC or AC.
The Silicon Designs accelerometer models listed below are virtually interchangeable within their single or triaxial families and g-ranges. Users can count on the same consistent performance, for example, between a Model 2210-025 and Model 2260-025; or, between a Model 2460-002 and Model 2466-002. They all share the same ease-of-use qualities for which Silicon Designs MEMS capacitive accelerometer modules are best known, including (but not limited to):
+8 to +32V Excitation
Supplying both 4 V DC Differential Output and 4.5V Single Ended Output
Integrated Amplification and Buffered Outputs
Manufacturer:Electronic Components
Datasheet:2210.pdf
