Description

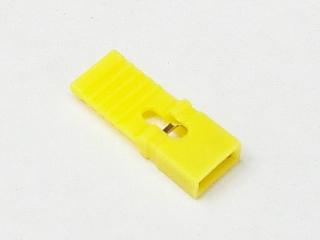

2228GG-YL Neltron Connector Jumper Shunt 2 Position 2.54mm Pitch, Yellow RoHS
A jumper pin with a 2.54 mm pitch. By inserting it into the pin header, the pins of each other are made conductive. It is long so that you can pinch it with your fingers.
There are different types depending on the color.
specifications
Type: Jumper pin
Number of poles: 2
Number of columns: 1
Pitch: 2.54mm
-Mounting type: Fit
Rated voltage: 500V
Rated current: 3A
Contact resistance: 30mO
Contact material: brass
Contact finish: Gold plating
Base color: Yellow
Operating temperature range: -40 to + 105 C
Overall length: 13.5mm
Manufacturer: Neltron
MFG Part #: 2228GG-YL
