Description

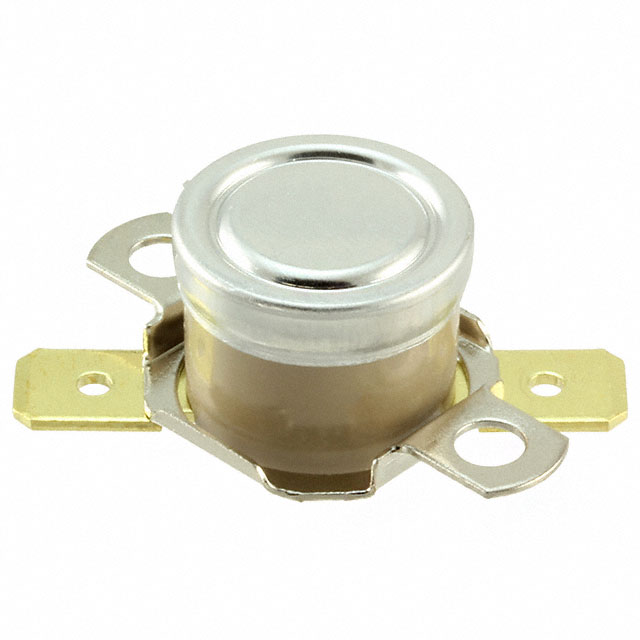

Basic Bi-MetallicThermostat
PPS Ryton body with steel end cap
Electrical terminals parallel to the mounting face and a floating steel bracket to ease mounting and increase temperature tolerance
N/C types open on temperature rise, N/O types close on temperature rise
1/4in. tab termination
Contacts are rated to 250Vac 10A with a maximum contact resistance of 50m?
Dielectric strength of 2000Vac
Specifications
Not what youre looking for? Select the attributes you require, then click the button below
Minimum Temperature 0C
Maximum Temperature +186C
Opening Temperature +90C
Closing Temperature +75C
Switch Configuration NC
Contact Rating 10 A
Contact Voltage Rating 250 Vac
Terminal Type Solder Tag
Categories Sensors, Transducers
Temperature Sensors – Thermostats – Mechanical
Manufacturer Honeywell Sensing and Productivity Solutions
Switching Temperature 86F (30C)
Reset Temperature 68F (20C)
Current Rating – AC 10A (240V)
Tolerance 5.4F (3C)
Termination Style Quick Connect
Mounting Type Chassis Mount
Package / Case Cylinder with Mounting Flange
Manufacturer:Honeywell
Datasheet:2455r_prod_sht2.pdf
