Description

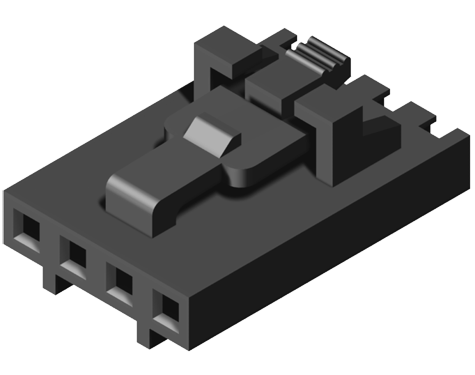

Amtek Technology Co., Ltd. 2544RO-04TR-L
Connector Type BOARD CONNECTOR
^Body Breadth 0.2500 inch
^Body Depth 0.4060 inch
^Body Diameter 0.4000 inch
^Body/Shell Style RECEPTACLE
^Contact Finish – Mating SN
^Contact Finish – Termination TIN
^Contact Gender MALE
^Contact Material BRASS
^Contact Pattern RECTANGULAR
^Contact Resistance 10 mohm
^Contact Style SQ PIN-SKT
^Dielectric Withstanding Voltage (V) 1000VAC
^Insulation Resistance 1.00E9 ohm
^Insulator Material NYLON
^Manufacturer Series 2544
^Mating Contact Pitch (inch) 0.1
^Mounting Option 1 LOCKING
^Mounting Style RIGHT ANGLE
^Mounting Type BOARD
^Number Of Connectors ONE
^Number Of PCB Rows 1
^Number of Rows Loaded 1
^Operating Temperature-Min -25 Cel
^Operating Temperature-Max (Cel) 85
^PCB Contact Pattern RECTANGULAR
^Polarization Key POLARIZED HOUSING
^Rated Current (Signal) 4 A
^Reference Standard UL
^Reliability COMMERCIAL
^Sub Category Headers and Edge Type Connectors
^Terminal Length 0.1340 inch
^Terminal Pitch 2.54 mm
^Terminal Type SOLDER
^Total Number of Contacts 4
Manufacturer Part Number: 2544RO-04TR-L
Amtek Technology
