Description

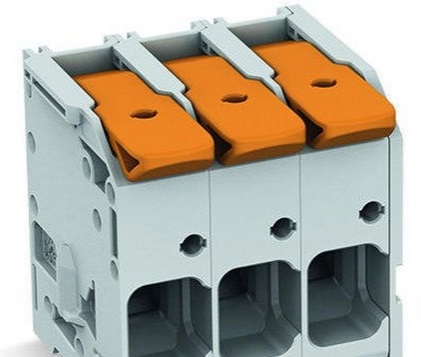

2616-1103/010-000 Wago PCB terminal block; lever; Pin spacing 10 mm; M pinning; 3-pole; Push-in CAGE CLAMP®; gray PCB Mount RoHS
Specifications
Item Number: 2616-1103/020-000
Brand: Wago
Item Category:Terminal Blocks
Subcategory: PCB Mount
Series: 2616
RoHS: Yes
Number of Levels: 1
Mounting Type: PCB Mount
Number of Poles: 3
Connection Type: Spring Clamp
Connection Actuation: Lever
Pin Spacing: 10 MilliMeters
Pin Length: 4 MilliMeters
UL Current: 66 Amps
UL Voltage: 600 Volts AC
UL Wire Range (AWG): 18~4 AWG
IEC Current: 76 Amps
IEC Voltage: 1,000 Volts AC
IEC Wire Range (mm2): 0.75~16 mm2
Color: Gray
Wire Entry Position: Side
PCB Contact: THT
Composition: Polyamide
Temperature Range: -76 to 221 Degrees F
Pluggable: No
Approvals: cURus;CSA
H x W x D: 1.47 in x 1.29 in x 1.26 in
Net Weight: .99 oz
PCB terminal block; lever; Pin spacing 10 mm; W pinning; 3-pole; Push-in CAGE CLAMP; gray
PCB terminal blocks with levers and Push-in CAGE CLAMP connection
Push-in termination of solid and ferruled conductors
Intuitive and tool-free operation
Several clamping units can be held open simultaneously convenient for terminating multi-core cables
Testing can be performed both parallel and perpendicular to conductor entry
Manufacturer:Wago
Datasheet:2616-1103_010-000_20.08.2020.pdf
