Description

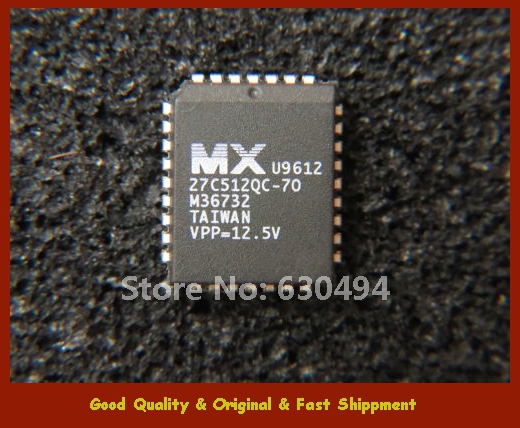

Macronix – MX 27C512QC-70 UV EPROM and OTP EPROM FAST ACCESS TIME: 45ns LOW POWER
Macronix International 27C512Qc-70 IC UV EPROM and OTP EPROM FAST ACCESS TIME: 45ns LOW POWER “CMOS” CONSUMPTION: – Active Current 30mA – Standby Current 100µA PROGRAMMING VOLTAGE: 12.75V ELECTRONIC SIGNATURE for AUTOMATED PROGRAMMING PROGRAMMING TIMES of AROUND 6sec. (PRESTO IIB ALGORITHM) 28 28 1 1 FDIP28W (F) PDIP28 (B) DESCRIPTION The M27C512 is a high speed 524,288 bit UV erasable and electrically programmable EPROM ideally suited for applications where fast turnaround and pattern experimentation are important requirements. Its is organized as 65,536 by 8 bits. The Window Ceramic Frit-Seal Dual-in-Line package has transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure. For applications where the content is programmed only one time and erasure is not required, the M27C512 is offered in Plastic Dual-in-Line, Plastic Thin Small Outline and Plastic Leaded Chip Carrier packages. PLCC32 (C) TSOP28 (N) 8 x 13.4mm
Manufacturer:Electronic Components
Datasheet:Others/MX27C512QC.pdf
