Description

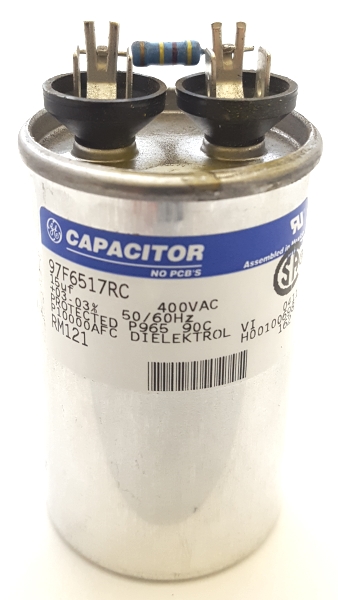

Genteq GE HID Lighting Capacitor 15mF 400 VAC 3 %
HID Lighting / Motor Capacitors-GEM III
with removable 470K ohm bleeder resistor
Features:
– Combo Terminal: 0.250 x 0.031 quick connect blades
– Material: Unpainted Aluminum case, Ternplate steel cover plus a solderable fork on each terminal
– Dielectric: Polypropylene Film
– Dielectric Fluid: Dielektrol IV
Designed for HID Lighting applications where the capacitors are used as part of the ballast circuit for mercury vapor, metal halide, and high-pressure sodium lamps.
Capacitance: 15.0uF
Voltage: 400VAC
Tolerance: 3%
Frequency: 50/60 Hz
Leakage Current: 30uA (max)
Dissipation Factor: 0.1% (max)
Operating Life: 60,000 hours with 90% survival
Operating Temperature: -40 to 90 Deg. C.
Dimensions: 44.45mm x 73.152mm (1.75″ x 2.88″)
Manufacturer by: GE/Genteq
Part Number: 97F6517RC
Manufacturer: GE/Genteq
Part Number: 97F6517RC
Capacitance (uF): 15
Amps: .00004
Voltage (Vac): 400
Tolerance (%): 3
Lead/Terminal Type: Blades
Number Leads/Terminals: 2
Material: Polypropylene Film
Color: Silver
Temperature: 90
Shape: Round (Cylindrical)
Termination Method: Quick Connect
Manufacturer: Genteq
MFG Part #: 27L1132RC
