Description

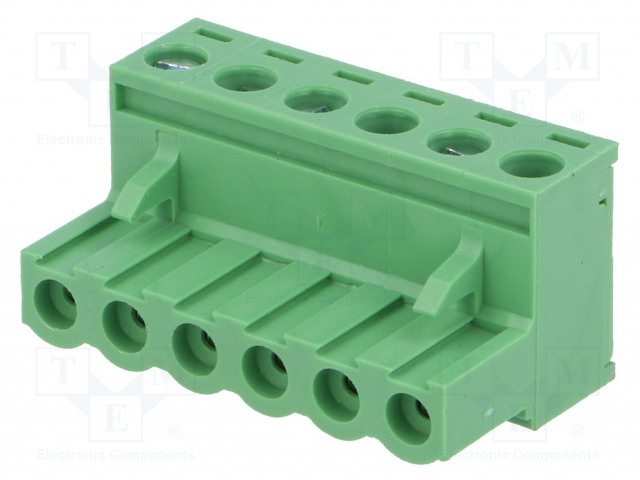

Degson Electronics 2EDGK-5.0-06P-14-1000A(H) Pluggable terminal block 6 straight female plug ways 5mm pitch 6poles Lead free / RoHS: Compliant
Manufacturer : DEGSON ELECTRONICS
Type of connector : pluggable terminal block
Contacts pitch : 5mm
Number of ways : 6
Spatial orientation : straight
Connector : plug
Kind of connector : female
Mechanical mounting : for cable
Electrical mounting : cage clamp, screw terminal
Colour : green
Rated voltage : 320V
Current rating : 20A
Type of pin configuration : 1×6
Body material : PA66
Locking system : latch
Flammability rating : UL94V-0
Conform to the norm : CE, UL, VDE
Operating temperature : -40…105C
Contact material : phosphor bronze
Number of terminals : 6
Wire size : 28AWG…12AWG
Wire cross section : 2.5mm2 : Additional information
Gross weight: 8.855 g
Manufacturer part number: 2EDGK-5.0-06P-14
Manufacturer:Degson
Datasheet:2EDGK-5.0-1000AH.pdf
