Description
2SEPC560MZ Panasonic Electronic Components Aluminum Organic Polymer Capacitors 2.5volts 560uF ESR 7mohm
^Manufacturer: Panasonic
^Product Category: Aluminum Organic Polymer Capacitors
^RoHS: RoHS Compliant Details
^Product: Can
^Termination Style: Radial
^Capacitance: 560 uF
^Voltage Rating DC: 2.5 V
^Tolerance: 20 %
^ESR: 7 mOhms
^Ripple Current: 4180 mA
^Minimum Operating Temperature: – 55 C
^Maximum Operating Temperature: + 105 C
^Diameter: 5 mm
^Length: 9 mm
^Lead Spacing: 2 mm
^Brand: Panasonic
^Dissipation Factor DF: 10
^Leakage Current: 500 uA
^Packaging: Bulk
^Series: SEPC
^Factory Pack Quantity: 500
^Tradename: OS-CON
^Type: Organic Polymer Aluminum – Radial Capacitors

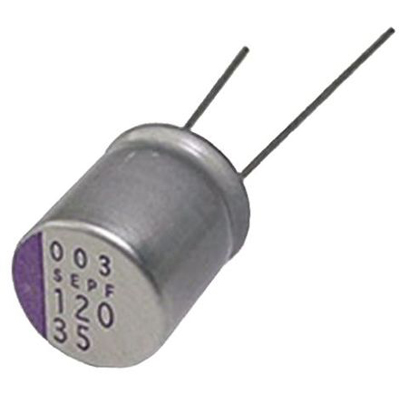

Panasonic OS-CON SEPC electrolytic capacitors have a solid aluminium construction with a high conductive polymer. These aluminium capacitors offer super low ESR between 5 m? and 24 m? and feature large capacitance up to 2700μF.
Manufacturer Part Number: 2SEPC560MZ
Panasonic
