Description

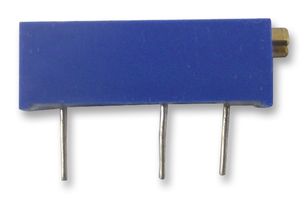

BOURNS 3006P-1-202LF POTENTIOMETER CERMET TRIMMER 2KOHM 10% 0.75W(3/4W) 15(ELEC)TURN 2.36MM (20.57 X 4.83 X 6.35MM) PIN THRU-HOLE ROHS
The Bourns Trimpot 3006 series are cermet, through hole trimming potentiometers. These potentiometers are multi-turn which performs a variety of circuit adjustments in all types of electronic equipment. Typical applications are measuring linear distance, angle or rotation in production equipments.
- 3/4inch rectangular potentiometer
- Side adjustment with lead screw
- Sealing is IP65 rated
- 15 turns and rotational life of 200 cycles
- Resistance value ranges from 10 ohm to 5Mohm
- ±10% tolerance
- Temperature coefficient is ±100ppm/°C
- Operating temperature ranges from -55°C to +125°C
- Power rating is 0.75W
- Low PC board profile of 1/4 ” high
Applications
Industrial; Consumer Electronics; Portable Devices; Power Management
Manufacturer Part Number: 3006P-1-202LF
Bourns
