Description

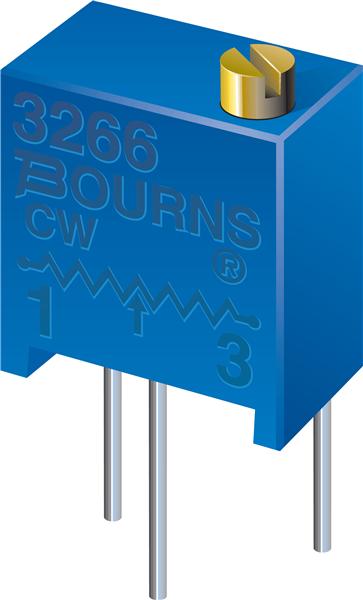

3266W-1-501 Bourns Trimmer Resistors 500 Ohm 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12 Turn Top Adjustment
- 1/4inch square potentiometer
- Side or top adjustment with lead screw
- Sealing is IP65 rated
- 12 turns and rotational life of 200 cycles
- Resistance value ranges from 10 ohm to 1Mohm
- ±10% tolerance
- Temperature coefficient is ±100ppm/°C
- Operating temperature ranges from -55°C to +125°C
- Power rating is 0.25W
- Standoffs allow thorough PC board cleaning
Applications
Manufacturer: Bourns
Product Category: Trimmer Resistors – Through Hole
RoHS: No
Product: Multiturn
Resistance: 500 Ohms
Brand: Bourns
Adjustment: Top Crossed
Power Rating: 250 mW (1/4 W)
Termination Style: Radial
Tolerance: 10 %
Element Type: Cermet
Length: 6.71 mm
Mounting: PCB Mount
Operating Temperature Range: – 55 C to + 150 C
Packaging: Tube
Product Type: Square Trimming Potentiometer
Series: 3266
Factory Pack Quantity: 100
Taper: Linear
Type: Trimmers
Width: 4.50 mm
Product Type Potentiometer
Package Rectangular Package
Resistance Law Linear
Manufacturer Series 3266
Operating Temperature-Min (Cel) -55
Operating Temperature-Max (Cel) 150
Terminal Shape WIRE
Resistance (ohm) 500
Terminal Finish TIN LEAD
Number of Terminals 3
Rated Temperature (Cel) 70
Lead Free NO
Rated Power Dissipation (P) (W) 0.25
Mounting Through Hole
Packaging Tube
Power Rating 1/4W
Product Depth 4.5mm
Product Length 6.71mm
Resistance Value 500Ohm
Shaft Diameter 1.78mm
Tolerance (%) 10
Temperature Coefficient ±100ppm/°C
Tolerance 10%
Type Trimmer
Termination Style Pin
Resistive Element Material Cermet
Family 3266
Maximum Operating Temperature 150°C
Minimum Operating Temperature -55°C
Product Height 8.26mm
Technology Cermet
Mounting Feature Through Hole
Number of Turns 12
Actuator Orientation Vertical
Actuator Type Screw
Manufacturer Part Number: 3266W-1-501
Bourns
