Description

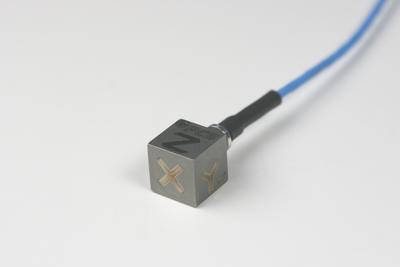

356M57 PCB Piezotronics Low Outgassing Accelerometer 500g Triaxial miniature (4 gm) ceramic shear ICP accel. 10 mV/g 2 to 7k Hz 5 -ft attached cable base model 356B11 RoHS
Low Outgassing, Triaxial, miniature (4 gm), ceramic shear ICP accel., 10 mV/g, 2 to 7k Hz, 5 -ft attached cable, base model 356B11
This accelerometer features low out-gassing construction that is ideal for use in thermal vacuum chambers for environmental testing.
Sensitivity: (10%)10 mV/g (1.02 mV/(m/s))
Measurement Range: 500 g pk (4905 m/s pk)
Electrical Connector: Integral Cable
Triaxial ICP miniature vibration sensor for vacuum applications,
Low outgassing
Measuring range 500 g
Sensitivity 10 mV / g,
Frequency range 2 7,000 Hz,
Weight 4 grams,
Integrated connection cable, length 1.5 m,
ending on 4-pin female connector,
without extension cable
Manufacturer: Electronic Components
MFG Part #: 356M57
