Description
3M Interconnect 3782-10P-270A Twisted Pair Flat Cable Polyvinyl Chloride 20Conductors 28AWG 300V 30.48m Box 24.4 mm Width
Specifications
Manufacturer:3M
Product Category:Flat Cables
Product:Twisted Cable
Number of Conductors:20 Conductor
Wire Gauge – AWG:28 AWG
Conductor Spacing:1.27 mm
Shielding:Unshielded
Color:Multicolor
Voltage Rating:300 V
Cable Length:100 ft
Insulation Material:Polyvinyl Chloride (PVC)
Jacket Material:Polyvinyl Chloride (PVC)
Conductor Material:Tinned Copper
Stranding:7 x 36
Minimum Operating Temperature:- 20 C
Maximum Operating Temperature:+ 80 C
Brand:3M
Flammability Rating:UL VW-1
Product Type:Flat Cables
Subcategory:Cable
Unit Weight:2.777 lbs
Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment. Colour coded ribbon cable with alternate twisted pair and parallel conductor sections. Twisting of adjacent conductors reduces crosstalk whilst the flat sections at regular intervals still facilitate easy termination.

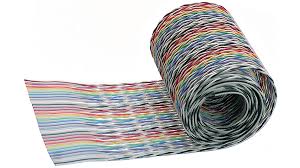

1.27 mm pitch twisted stranded cables – 3782 type
Ribbon cables that combine the advantages of flat cables with twisted sections for flexible use.
These cables alternate 245 mm twisted sections with 50 mm flat ribbon sectionsover their entire length.
Manufacturer:3M Electronic Solutions
Datasheet:3M/3782.pdf
