Description

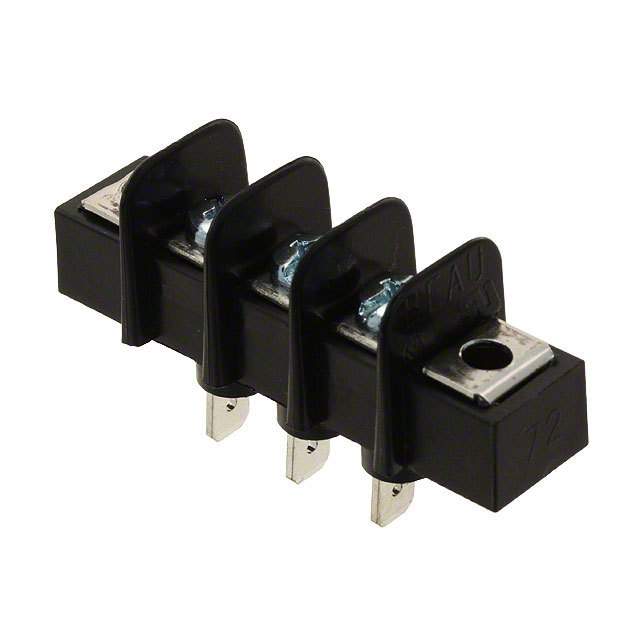

Molex 38721-7303 Connector Barrier Terminal Blocks SRB.375 3ckt .250 t ab term SEM mounting
Product Attributes
Categories Connectors, Interconnects
Terminal Blocks – Barrier Blocks
Manufacturer Molex, LLC
Series Beau 38721
Terminal Block Type Barrier Block
Number of Circuits 3
Number of Wire Entries 3
Pitch 0.375″ (9.53mm)
Number of Rows 1
Current Rating 20A
Voltage Rating 300V
Wire Gauge 12-22 AWG
Top Termination Screws with Captive Plate
Bottom Termination Quick Connect (0.187″), Insulated
Barrier Type 2 Wall (Dual)
Features Flange
Color Black
Terminal Screw Material Steel
Terminal Screw Finish Zinc, Clear Chromate
Mounting Type Chassis, Panel
Operating Temperature -40C ~ 100C
Material – Insulation Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating UL94 V-0
Manufacturer Part Number: 38721-7303
Molex
