Description

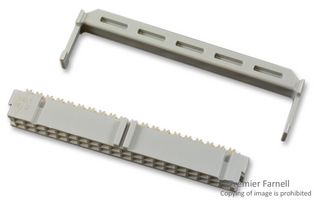

3M 3417-6640 Ribbon Cable Connector Housing 40 Position Receptacle 2 x 20 0.1″ Spacing
The 3417-6640 is a 40-way 0.100 x 0.100-inch Wiremount Socket for 0.050-inch pitch cable, with gold-plated copper alloy contacts and IDC/IDT termination. This 3000 series socket is glass filled polyester (PBT) insulated, mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. This wiremount socket has open end cover, military polarization with centerbump and 40-contacts for plastic strain relief.
- Grey colour
- Open or closed end covers available
- Accepts flat cable or discrete wire
- UL94V-0 Flammability rating
- 1A Current rating
- 1 x 10?Ω at 500VDC Insulation resistance
Applications
Industrial
Also Known As
GTIN UPC EAN: 00054007336440 80610120984
Specifications
Manufacturer: 3M
Product Category: Headers & Wire Housings
RoHS: RoHS Compliant Details
Brand: 3M Electronic Solutions Division
Product: Wire Housings
Type: Receptacle Housing
Number of Positions: 40 Position
Pitch: 2.54 mm
Number of Rows: 2 Row
Mounting Style: Cable
Termination Style: IDC
Contact Gender: Socket (Female)
Contact Plating: Gold
Series: 3000
Packaging: Tray
Qualification: Commercial
Factory Pack Quantity: 300
Part # Aliases: 05400733644 80610120984
Unit Weight: 2.200 lbs
Manufacturer Part Number: 34176640
3M Electronic Solutions
