Description

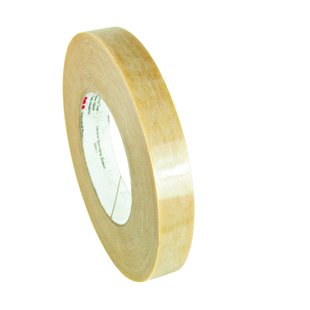

58-1/4″X72YD 3M Polyester Film Electrical Tape 0.25 Inch x 72 Linear Yard Roll
3M™ Tape 58 is a 2-mil transparent polyester film with rubber thermosetting adhesive.
3M™ Polyester Film Electrical Tape 58 is a general purpose polyester tape with thermosetting rubber adhesive. Designed for insulating applications requiring a thin, durable tape with high dielectric strength. It can withstand higher-temperature conditions than tapes with acetate cloth backings.
- 1/2 in X 72 yd, Clear
- General purpose polyester tape with thermosetting rubber adhesive
- Designed for insulating applications requiring a thin, durable tape with high dielectric strength
- Withstands higher-temperature conditions than tapes with acetate cloth backings
- Conformable, exhibits excellent chemical, solvent and moisture resistance and resists cut-through and abrasion
- 2-mil film thickness
Specifications
| Adhesion Strength | 60 Ounce |
| Adhesion to Steel oz/in (N/100 mm) | 60 (63) |
| Adhesive Material | Thermosetting Rubber |
| Backing Material | Polyester |
| Breaking Strength | 50 lb/in |
| Color | Translucent |
| Dielectric Strength | 7000 Volt |
| Electrolytic Corrosion Factor | 1 |
| Flame Resistant | No |
| Insulation Resistance | 1 x 10^6 megohms |
| Length | 72 Linear Yard |
| Length (Metric) | 65.8 m |
| Operating Temperature Range (Celsius) | 0 to 130 Degree Celsius |
| Operating Temperature Range (Fahrenheit) | 32 to 266 Degree Fahrenheit |
| Printed Tape | No |
| Product Type | Polyester Film Tape with Rubber Adhesive |
| RoHS 2011/65/EU Compliant | Yes |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption *Important RoHS information |
| Rolls per Case | 72 |
| Thickness | 3.3 mil |
| Thickness (Metric) | 0.084 mm |
| Width | 0.5 Inch |
Manufacturer Part Number: 58-1/4X72YD
3M Electronic Solutions
