Description

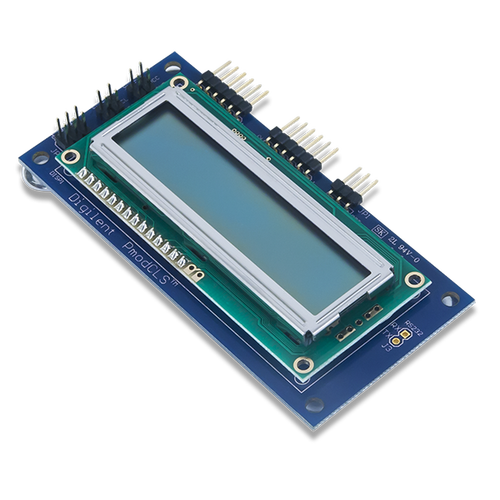

410-092 Digilent Display Development Tools Character LCD with Serial Interface RoHS
There are two UART signal pin assignment conventions in use on Digilent products. This product uses the old signal assignment convention. Connecting a product using the old convention with one using the new convention requires the use of a UART Crossover Cable (not included). Click here for a more detailed explanation.
Features:
16×2 liquid crystal character display
Wide range of instruction functions
Up to 32 user definable characters
Multiple communication options including UART, SPI, and I2C
Small PCB size for flexible designs at 1.8 x 3.8 (4.6 cm x 9.7 cm)
Two 1×6-pin Pmod connectors with SPI and UART interfaces
Library and example code available
Manufacturer:Electronic Components
Datasheet:pmodcls_rm.pdf
