Description
Mcmaster Carr High-Pressure Braided Chemical Hose with Fittings
For Use With Acetone, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Sodium Hydroxide, Vegetable Oil, Xylene
Temperature Range -65 to 450F
Connection Type Pipe x Pipe
Fittings 303 Stainless Steel Threaded NPT Male (Swivels Until Tightened) x 303 Stainless Steel Threaded NPT Male (Swivels Until Tightened)
Pipe Size 1/2 x 1/2
ID 1/2″
OD 5/8″
Bend Radius 6 1/2″
Maximum Pressure 1,500 psi @ 72F
Maximum Vacuum 28″ of Hg @ 72F
For Use Outdoors Yes
Material PTFE
Braid Material 304 Stainless Steel
Interior Texture Smooth
External Reinforcement Braided
Specifications Met Hose Meets SAE 100R14
Chemical Resistance
No effect (no performance degradation) Acetone (Up to 212F), Ethanol, Hydrogen Peroxide (10% in Water) (Up to 125F), Hydrogen Peroxide (30% in Water) (Up to 125F), Isopropyl Alcohol (Up to 69F), Liquid Ammonia (Up to 69F), Methyl Ethyl Ketone (Up to 160F), Mineral Oil (Up to 150F), Sodium Hydroxide (Caustic Soda) (30% in Water), Vegetable Oil (Up to 150F), Xylene (Up to 69F)
Not Recommended Carbon Dioxide, Chlorine, Mineral Spirits, Sulfuric Acid (10% in Water), Toluene (Methylbenzene)
Note Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.
Other Lengths 12″ to 240″

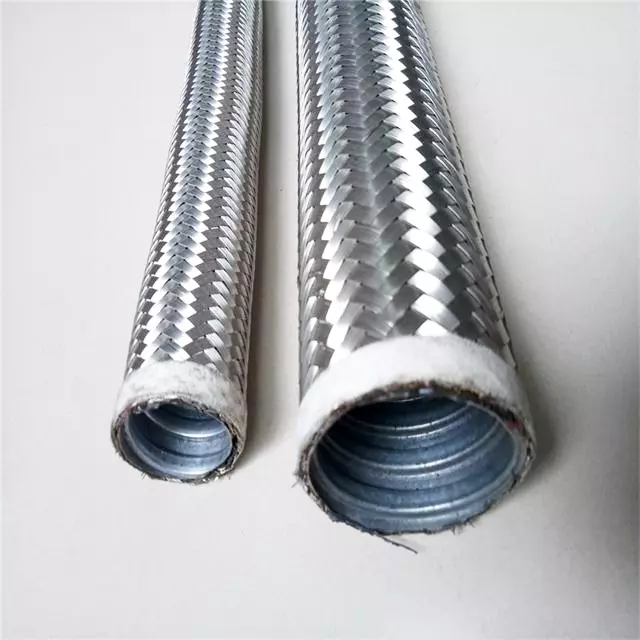

This heavy duty hose is PTFE with a stainless steel braid for more chemical resistance and better strength than other chemical hose.
Fittings that swivel until tightened are easy to install. Brass fittings have good corrosion resistance; 303 stainless steel fittings have very good corrosion resistance.
Manufacturer Part Number: 4552K204-72
McMaster-Carr
