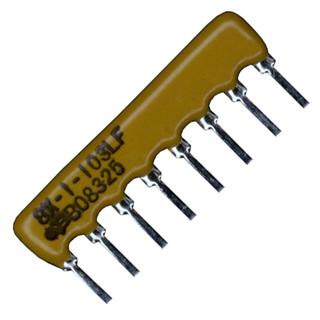

4608X-101-103 Bourns Resistor Networks & Arrays 8pins 10Kohms Bussed
4608X-101-103 Bourns Resistor Networks & Arrays 8pins 10Kohms Bussed - Image 2

4608X-101-103 Bourns Resistor Networks & Arrays 8pins 10Kohms Bussed

Bourns – Net 4608X-101-103 Resistor , Network;10000 Ohms;Bussed;Epoxy Resin;Conformal SIP;1W;+/-2%;100V;8Pin

ENQUIRY!
SKU: 4608X-101-103 Categories: , Tags: , , Brand:

Description

BOURNS 4608X-101-103 RESISTOR NET BUSSED 10K OHM 8-SIP

Net – Net 4608X-101-103 Resistor esistor, Ntwrk;10000 Ohms;Bussed;Epoxy Resin;Conformal SIP;1W;+/-2%;100V;8Pin

The Bourns 4600X series are thick film, resistor networks in single inline package. The number of resistor networks and configuration type are selected based on part numbering. These resistor networks helps in space sensitive applications by minimizing space, reducing costs, increasing board yields and reliability by reducing component count. Typical applications include computer, telephone equipment, telecommunication testers, satellites, optical networking and voice recognition equipment.
  • Resistance value ranges from 10 ohm to 10Mohm
  • Tolerance and power rating is based on network circuits
  • Operating voltage of 100V
  • Temperature coefficient is ±100ppm/°C and ±250ppm/°C available
  • Operating temperature ranges from -55°C to +125°C
  • Low profile is compatible with DIP package
  • Wide assortment of pin packages enhances design flexibility
  • Recommended for rosin flux and solvent clean or no clean flux processes

Applications

Industrial; Consumer Electronics; Portable Devices; Power Management

Specifications

Manufacturer: Bourns
Product Category: Resistor Networks & Arrays
RoHS: Exemption
Brand: Bourns
Product: Networks
Termination Style: SIP
Resistor Values: 10 kOhms
Tolerance: 2 %
Circuit Type: Bussed
Number of Resistors: 7
Number of Pins: 8
Temperature Coefficient: 100 PPM / C
Operating Temperature Range: – 55 C to + 125 C
Package / Case: SIP-8
Length: 17.73 mm
Width: 2.49 mm
Height: 5.08 mm
Series: 4600X
Lead Diameter: 0.508 mm
Lead Spacing: 2.54 mm
Packaging: Bulk
Power per Element: 125 mW (1/8 W)
Power Total Package: 880 mW
Qualification: Commercial
Type: Thick Film Conformal SIPs, Low Profile
Voltage Rating: 100 V
Manufacturer Part Number: 4608X-101-103
