Description

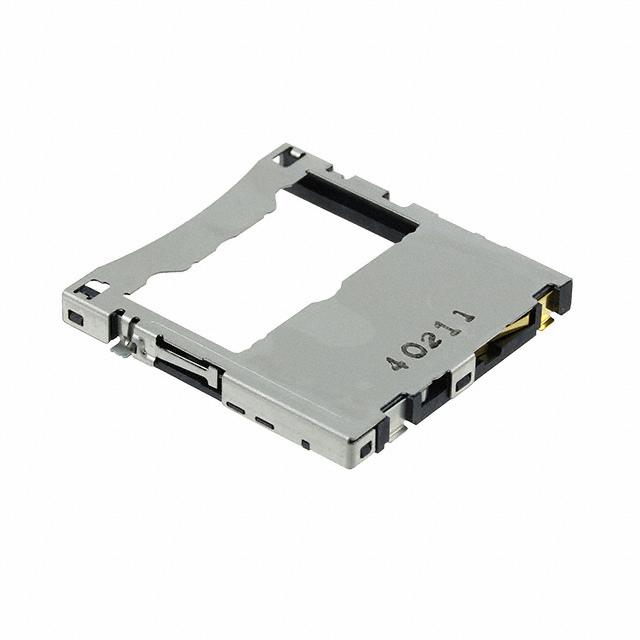

500998-0900 MOLEX Memory Card Connector 9 Way Right Angle SD Card With Solder Termination MEMORY CARD CONNECTOR, SD, 9 POSITION, Connector Type:Memory Socket, Series:500998, No. of Contacts:9, Contact Material:Copper, Contact Plating:Gold, Contact Termination Type:Surface Mount, Height:3.10mm, Housing Style:Right-Angle , RoHS
Manufacturer: Molex
Product Category: Memory Card Connectors
RoHS: RoHS Compliant Details
Brand: Molex
Product: Card Connectors
Card Type: SD
Number of Contacts: 9
Number of Rows: 1 Row
Pitch: 2.5 mm
Termination Style: SMD
Current Rating: 500 mA
Mounting Style: –
Contact Material: Steel
Contact Plating: Gold
Housing Material: Thermoplastic
Insertion – Extraction Style: Push-Push
Mounting Type: Standard
Orientation: Right Angle
Packaging: Reel
Series: 500998
Factory Pack Quantity: 400
Voltage Rating: 100 VAC
500998 and 67600 series 9 circuit SD memory card connectors with a 2.5 mm pitch and an ultra-low profile height of 2.8 mm. These SIM card sockets feature a push-push mechanism for easy insertion or removal of the SD card and a card detection switch. The housings of these SD memory card connectors are made from high temperature thermoplastic that can withstand lead-free processing. Fully shielded covers provide protection against EMI interference.
Features and Benefits
• Ultra-low profile 2.8 mm design
• Push-push mechanism for easy card insertion and removal
• Card detection switch
• High temperature thermoplastic housings
• Fully shielded metal covers for EMI protection
• PCB locators for accurate mounting
Manufacturer Part Number: 500998-0900
Molex
