Description

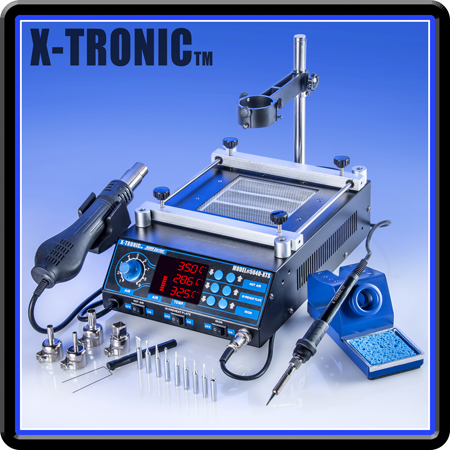

Introducing the New ALL IN ONE X-TRONIC 5000 Series – Model #5040-XTS Fully Digital (ESD Safe) Hot Air Rework Soldering Station and Preheating Station. Please note that we have “Beta Tested” this unit for over a year and are 100% assured that the quality of this product is Right Up To Par with ALL of our X-Tronic products. This unit features a 70 Watt Soldering Iron, a 500 Watt Hot Air Gun and a Preheating Station. You can easily change the LED readouts from “Centigrade to Fahrenheit” for the Soldering Iron & Hot Air Temperatures with the push of a button. This unit features Magic Temperature Control Technology which the program will cycle every 20 milliseconds to detect the actual temperature of the soldering iron’s heating element, quickly correct it with a rapid return to the correct set temperature. This unit also has a Self-Test function with full intelligence on over-temps, short-circuits and overloads.PRODUCT SPECIFICATIONS:
^
^ Model: X-Tronic 5000 Series – Model #5040-XTS
^ Samsung Microcontroller
^ PID Programmable Temperature Control Technology (Magic Temp Technology)
^ Centigrade/Fahrenheit Programmable
^ ESD Safe
^ Total Power Consumption: 1270 Watts
^ Hot Air Gun Type: Brushless Fan
^ Hot Air Gun: 500 Watts – Temperature Range 212 F ~ 896F/100C ~ 480C with Auto Cool Down Safety Feature
^ Hot Air Gun Air Flow: 28 L/Min
^ Hot Air Gun Temperature Stability: 1.8F/1.0C
^ Hot Air Gun Tube Material: 100% Silicone (Virtually No Memory)
^ Soldering Iron: 70 Watts Total Power Output – Temperature Range 392F ~ 896F/200C ~ 480C
^ Soldering Iron Temperature Stability: 4.8F/1.0C – Cord Length: 56.0 In./142.2 Cm.
^ Soldering Iron Cord Material: 100% Silicone (Virtually No Memory)
^ Preheating Station Telescopic Adjustment Arm: Up to 7.00″
^ Preheating Station Heating Bed Size: 4.75″ x 4.75″
^ Preheating Station Circuit Board Bracket Size: Holds a circuit board up to 6.50″ Wide.
^ Preheating Station Temperature Range: 122F ~ 752F/50C ~ 400C
^ Working Environment of unit: 0F ~ 122F/ 0C ~ 50C
^ Storage Environment of unit: -68F ~ 176F/-20C ~ 80C
^ Product Dimensions of unit: 7.40″W x 5.75″H x 9.80″D
^ Shipping Weight: 13 Lbs.
^ Actual Unit Weight: 12 Lbs.
^ 110/120V – 60 Hz (NO 220V units available)
Manufacturer Part Number: 5040-XTS
