Description

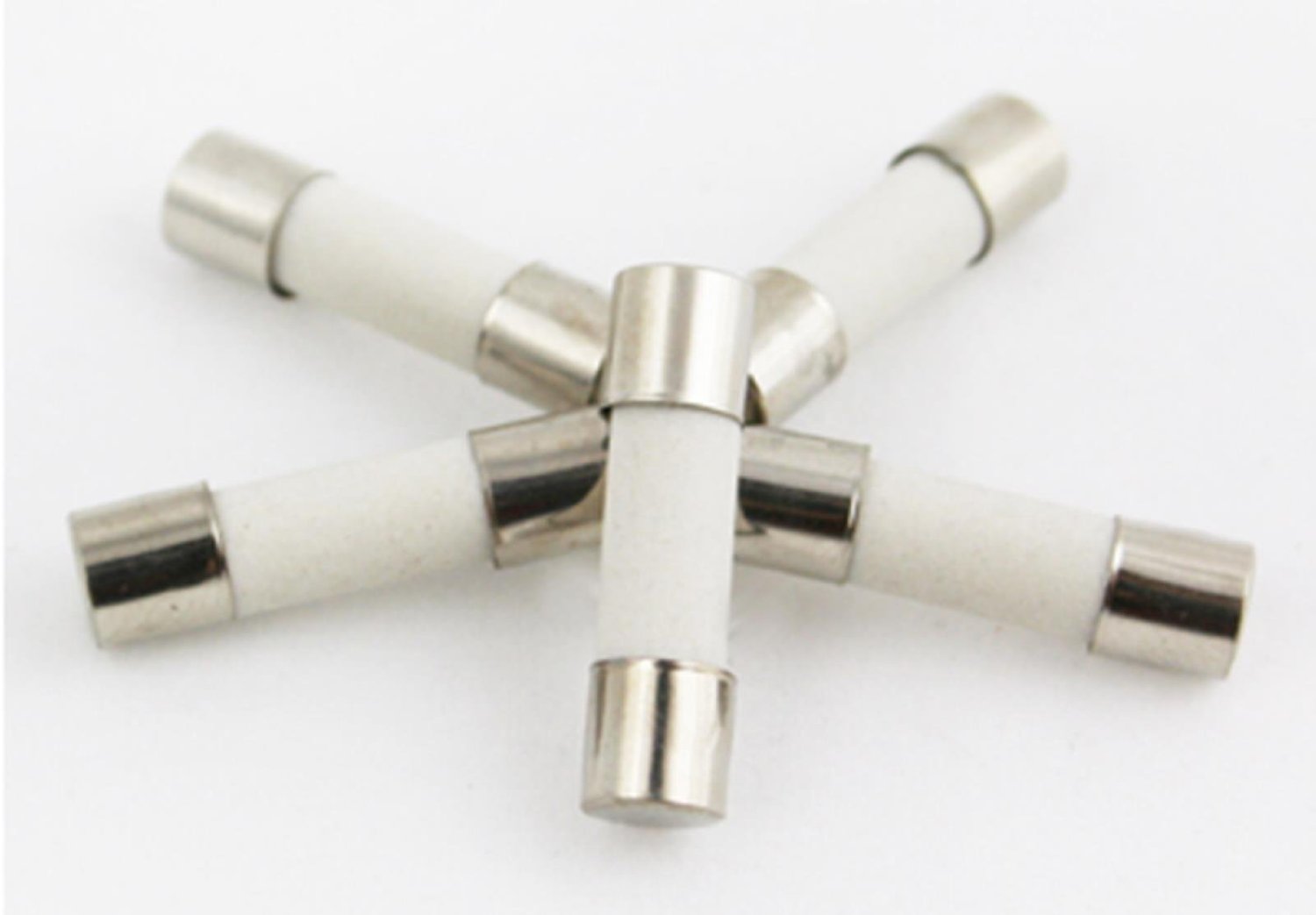

HOLLYLAND HIGH BREAKING CAPACITY CERAMIC TUBE FUSE 1A 250V
Standards:IEC 60127 GB 9364
Operating Temperature:-55C ~125C
Storaging Temperature:-55C ~85C
Resistance to soldering heat:260C, 10s Max
Solderability:245C 5C , 5s0.5s
Compact fuselink suitable as main fuse for high current applications
Direct mounting eliminates need for fuseholder & improves safety
50CF Series
Dimensions (DxL): 5.2 x 20 mm
Current Rating: 250mA~16A
Voltage Rating: 250 Vdc
Safety Approvals: UR, cUR, VDE
Complete details on manufacturer’s web site:
HOLLYLAND COMPANY LIMITED
50CF(P) 010H
DIMENSIONS (MM) 5.2x20mm
RATED CURRENT 1A
RATED VOLTAGE 250vdc
TECHNOLOGY Quick-acting
TYPE Ceramic tube
