Description

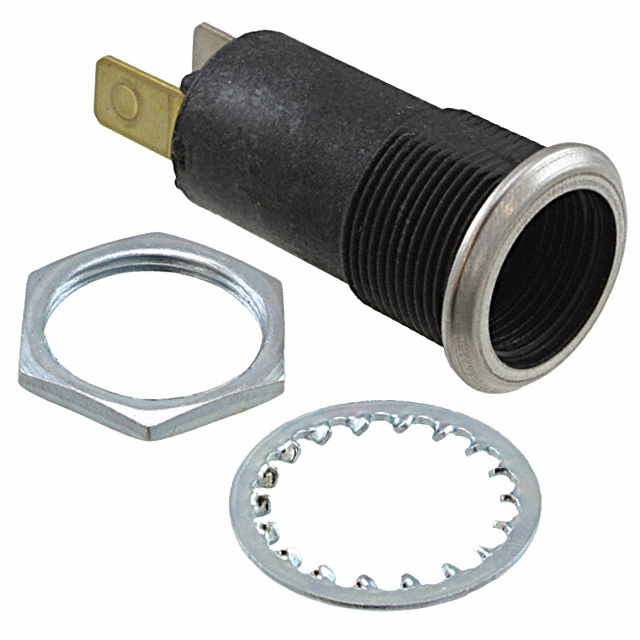

5100-824 VCC INDICATOR Incandescent Lamp, Solder Terminal, 17 mm, 250 V Socket Panel Mount T2 T3 1/4 Incandescent Miniature Bayonet 250V 5100 Series
The 5100-824 is a 250V incandescent front panel mount miniature Indicator Light, relampable with 22AWG wire leaded and quick connect terminal. The 5100-series is versatile, industry standard, with stainless steel bezel, glass filled polyester housing, zinc plated steel hexagonal nut, chromate treated steel lock washer, high temperature Lexan is excellent for providing a large, bright, easily noticed status indicator. Indicators mount in 0.688-inch hole, 0.969-inch centers, 0.406-inch maximum panel thickness.
Specifications
Manufacturer: VCC
Product Category: Lamp Holders & Accessories
Product: PMI Base
Lamp Type: Incandescent, Neon
Lamp Size: T-2, T-3 1/4
Lamp Base Type: Miniature Bayonet
Packaging: Bulk
Brand: VCC
Operating Supply Voltage: 250 V
Product Type: Lamp Holders
Factory Pack Quantity: 100
Subcategory: Lamps (Non-LED)
Unit Weight: 0.539380 oz
Manufacturer Part Number: 5100-824
