Description
56JS1-024M0 NAI North Atlantic Industries Ac/dc 50Watts, output single, output voltage 24V, reliability

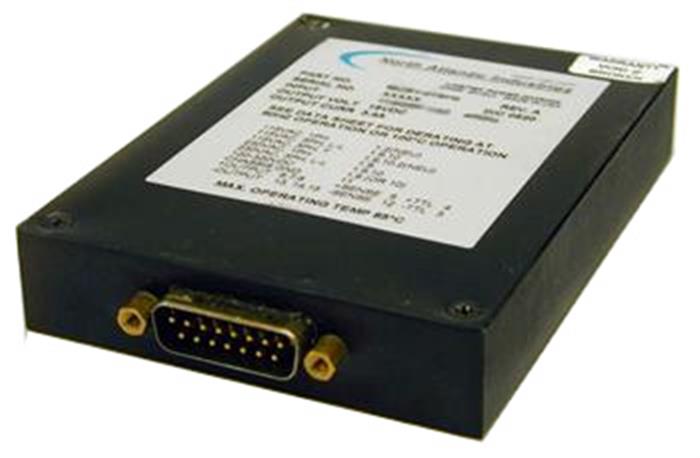

NAIs 56J1 is a 50 Watt AC/DC Power Supply that accepts multiple AC inputs plus a +270 VDC input. This COTS unit provides full-power output at a baseplate temperature of +85 C.
Standard features include remote error sensing; remote digital (TTL) turn on/off; and protection against transients, overvoltage, overcurrent, and short-circuits. Options such as ESS vibration testing, and choice of output voltages are available, and additional options and special units can be ordered.
This conduction-cooled power supply is specifically designed with NAVMAT component derating for rugged defense and industrial applications. It is also designed to meet the many harsh environmental requirements of military applications.
Power Supply Selection Guide
Features:
Ideal for rugged, conduction-cooled, military applications
Standard output voltages: 3.3 V, 5 V, 12 V, 15 V, 24 V, 28 V
Input transient protection per MIL-STD-704D
Integrated EMI filtering per MIL-STD-461D
High power density
Low profile packaging
Low noise
Operates at full load through the entire -55 C to +85 C temperature range
Contact factory for additional options and special units
Manufacturer:Electronic Components
Datasheet:NAI-PowerSupply-SelectionGuide.pdf
