Description

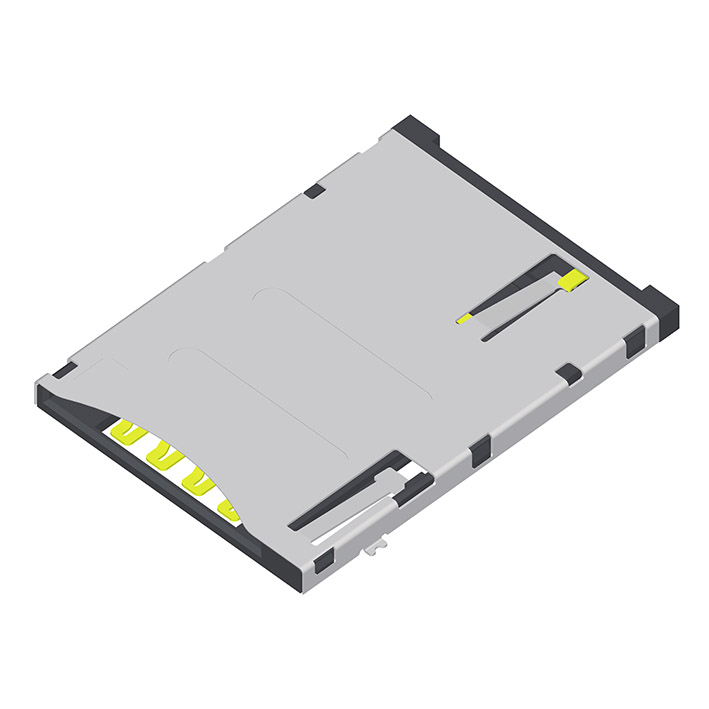

5KSIP-08S0PHE01 Amtek Technology Sim Card Holder Push-Push Type 8+1P H=1.85 RoHS
Specification:
Current Rating: 0.5 AMP
Insulation Resistance: 1000MO Min at 500V DC.
Contact Resistance: 100mOhm Max.
Dielectric Voltage: 500V AC/Minute
Operating temperature: -40C ~ +85C
Mating Cycles: 5000 cycles(speed: 400~600 cycles/h)
Material
Insulator: Hi-Temp. Thermoplastic, UL 94V-0
Contact Pin: Copper Alloy
Shell: Stainless Steel
Amteks Input/Output connectors provides the communication between an information processing system, such like a computer, and the outside world, possible a human or another information processing system. Inputs are the signals or data received by the system and outputs are the signals or data sent from it.
Manufacturer:Amtek Technology
Datasheet:Amtek/5KSIP-08S0PHE01.pdf
