Description
This is a simple two wire cable. Great for jumping from board to board or just about anything else. There is a 2 connectors on one end.
Factory manufacturing wire harness with connectors. You can find us the reasonable prices and good quality!

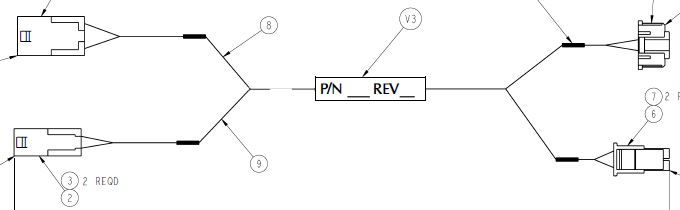

ITEM COLOR FROM TO
RED P I -I P2-3
WHITE Pl -2 P2-4
BLACK Pl -3 P2-2
RED P 3-I P 4- I
BLACK P3-2 P4-2
I. STRIP BACK INSULATION AND CRIMP TERMINALS TO MANUFACTURER’S SPECIFICATIONS
UNLESS OTHERWISE SPECIFIED.
2. STRIP BACK JACKET 6.0 11 AT Pl & P3 END AND 2.0 11 AT P2 & P4 ENDS. ITEM 8, CUT SHIELD
AND DRAIN WIRE BACK TO JACKET AND CENTER HEAT SHRINK , ITEM VI, OVER JACKET
AND SHRINK IN PLACE.
3. TIE TOGETHER CABLES, I TE MS 8 & 9 , US I NG CABLE T I E , I TE M V 2, EVERY 8 11 0 VER ENT I RE
LENGTH, STARTING FROM Pl & P3 SIDE.
4. MARK LABEL, ITEM V3, AS INDICATED. MARK WITH CURRENT REVISION NUMBER. INSTALL
LABEL ON CABLE.
5.TEST CABLE CONTINUITY TO WIRE RUN LIST.
6. STANDARD MANUFACTURER’S CERTIFICATE OF COMPLIANCE MUST ACCOMPANY EACH SHIPMENT.
7. THIS ASSEMBLY IS ROHS COMPLIANT.
8. BUILD CABLE TO LENGTH SPECIFIED ON DRAWING. CABLE QTY SPECIFIED ON BOM IS FOR REF. ONLY.
9. ACCEPTABILITY OF CABLE ASSEMBLY PER IPC-A-620 CLASS 2.
Manufacturer: Electronic Components
MFG Part #: 63813-01-REV-A
