Description

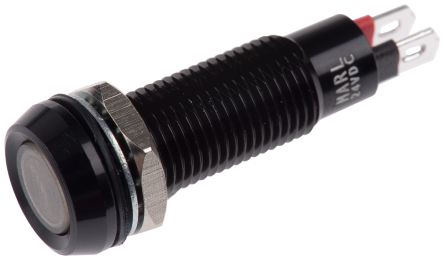

The 677-532-22 from Marl is a green panel-mount LED Indicator made of black anodised aluminium housing with polycarbonate Fresnel lens and silver flash coated brass termination. The internal reverse protection diode fitted as standard.
Wide viewing angle – Smoked lens
Applications
Industrial, Signalling
LED Indicator, 8.1mm Mount, 5/12/24/28Vdc, 677 Series
7mm High contrast smoked polycarbonate lens
11.5mm bezel low profile black anodised aluminium housing
Sunlight viewable
Fully internally potted
Shock and vibration resistant
‘D’ shaped mounting to prevent rotation
0.11in. (2.8 x 0.5mm) terminals
Supplied with
sealing washer, fixing nut, lock washer
Specifications
Voltage Rating 24 V dc
Light Output Colour Green
Mounting Hole Size 8.1mm
Lamp Size 7 mm
Length 33 mm
Type Panel Mount
Lamp Type LED
Termination Type Solder Tab
Bezel Style Recessed
Bezel Colour Black
Current Rating 20 mA
Manufacturer:MARL
Datasheet:Marl/1914695.pdf
