Description

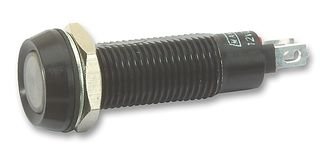

The 677-532-23-G is a green panel-mount sunlight readable LED Indicator with integral resistor. It can be fitted with a fixing nut and washer. A diode has been incorporated into the indicator offering reverse voltage protection to 1000VDC. Connection is via Faston/solder tab terminals.
140 Viewing angle
-20 to 60C Operating temperature range
Applications
Industrial, Signalling
Specifications
IP / NEMA Rating: IP67
Operating Voltage: 28VDC
Packaging: Each
Forward Current If: 20mA
Luminous Intensity: 23cd
Mounting Hole Dia: 8.1mm
LED Color: Green
Manufacturer:MARL
Datasheet:Marl/677-532.pdf
