Description

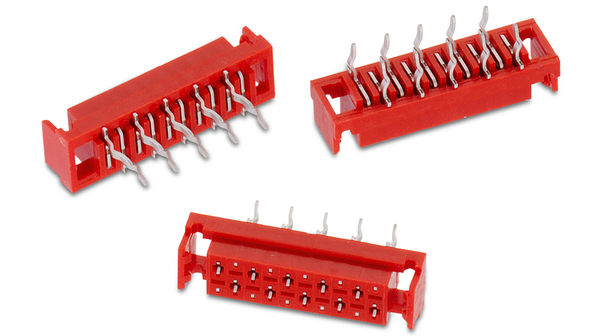

690367190472 WURTH FEMALE CONNECTOR W. LATCH & W/O POLARIZATION WR-MM 4POS RoHS
PROPERTIES: Standard Polarities 04;?06;?08;?10;?12;?14;?16;?18;?20;?22;?24;?26
Pitch 2.54 mm
Quality Class 25 Mating cycles
Gender Female
MATERIAL PROPERTIES: Insulator Material PBT
Insulator Flammability Rating UL94-V0
Contact Material Phosphor Bronze
Contact Plating Mat Tin over Nickel
Contact Type Stamped
GENERAL PROPERTIES: Operating Temperature -40 °C up to +105 °C
Compliance Lead free / RoHS
ELECTRICAL PROPERTIES: Rated Current [1] 1.5 A
Withstanding Voltage 500 V (AC)
Contact Resistance 10 m?
Insulation Resistance 1000 M?
STANDARD: cULus Approval E323964
PACKAGING PROPERTIES: Packaging Tube
Manufacturer:Wurth Elektronik
Datasheet:69036719xx72.pdf
