Description

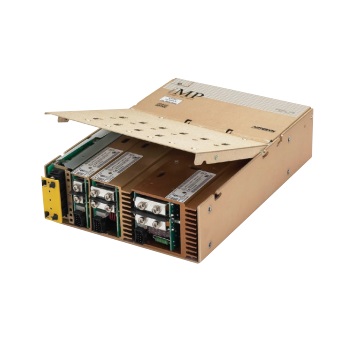

Artesyn Embedded Technologies Enclosed AC DC Converter, Power Supply Quad Output, 48 VDC@4 A | 5 VDC@10 A | 5 VDC@10 A | 15 VDC@8 A Industrial/Medical Enclosed AC-DC Power Supply
Full medical EN60601 approval
Intelligent I2C control
Voltage adjustment on all outputs (manual or I2C)
Configurable input and output OK signals and indicators
Configurable inhibit/enable
Configurable output UP/DOWN sequencing
Configurable current limit (foldback or constant current)
High power density (8.8 W/cu-in)
Intelligent fan (speed control/fault status)
Downloadable GUI from website
Customer provided air option
uP controlled PFC input with active inrush protection
I2C monitor of voltage, current, and temp
Programmable voltage, current limit,
inhibit/enable through I2C
Optional extended hold-up module (SEMI F47 compliance)
Increased power density to 50% over standard MP
External switching frequency sync input
Optional conformal coating
Industrial temp range (-40 C to 70 C)
No preload required
Industrial shock/vibration (> 50Gs)
Manufacturer: Electronic Components
MFG Part #: 73-690-6095I
