Description

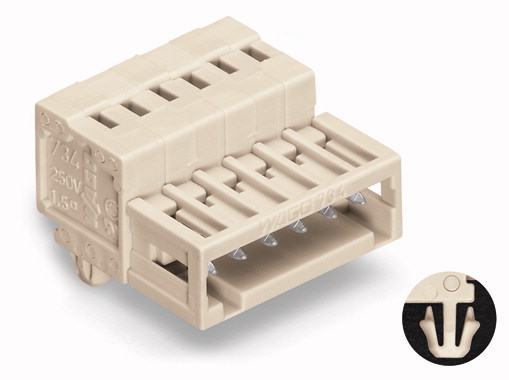

Wago 734-316 Male connector; with snap-in mounting foot; 16-pole; Pin spacing 3.5 mm / 0.138 in; with 209-137 mounting adapter also for DIN 35 rail; 100% protected against mismating; Plate thickness 0.6×1.2 mm; Fixing holes 3.5 mm
Universal connection for all conductor types
Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
For wire-to-wire and board-to-wire connections
Strain relief plates and housings for factory and in-the-field assembly
100% protected against mismating
Coding option available
Manufacturer Part Number: 734-316/019-000
Wago
