Description

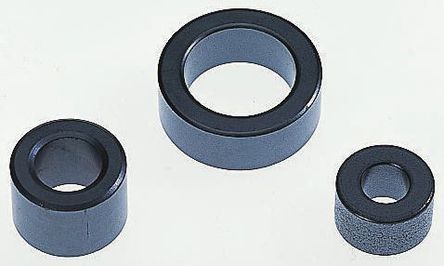

Wurth Elektronik Ferrite Ring Toroid Core, For: EMI Suppression, 13.2 x 7.1 x 12.7mm
WURTH 74270106 FERRITE CORE, CYLINDRICAL, 614OHM/100MHZ, Frequency Min:-, Frequency Max:-, External Diameter:12mm, Inner Diameter:6.1mm, Length:45mm, Ferrite Case Style:Tubular, Impedance:1.049kohm, Packaging:Each , RoHS
Manufacturer: Wurth Electronics
Product Category: Ferrite Cable Cores
RoHS: RoHS Compliant Details
Brand: Wurth Electronics
Product: Ferrite Bead Cores
Impedance: 70 Ohms
Inside Diameter: 8.5 mm
Outside Diameter: 12 mm
Outside Length: 15 mm
Core Material: 4 W 620
Operating Temperature Range: – C
Packaging: Bulk
Product Type: Axial Leaded Ferrite Bead
Series: WE-AFB
Test Frequency: 100 MHz
Type: EMI Suppression Axial Ferrite Bead
Unit Weight: 0.140073 oz
EMI Suppression Toroidal Ferrite – WE-TOF Series
The WE-TOF series NiZn Broadband absorber ferrite cores available in a diverse type and range of NiZn to give the best possible interference suppression. This series of EMI suppression tordial ferrite cores are suitable for use with standard wire, twisted wire, multi conductor and Co-axial cables.
Applications for the WE-TOF series include power supplies cable, data cable and measurement signal lines cable
| Dimensions (mm) | |||||||||
| Type | Impedance (Ω) @ 25MHz 1Turn |
Impedance (Ω) @ 100MHz 1Turn |
Impedance (Ω) @ 25MHz 2Turn |
Impedance (Ω) @ 100MHz 2Turn |
Cable ? (mm) | Material | a (mm) OD | b (mm) ID | c (mm) L |
| 74270111 | 30 | 50 | 123 | 151 | ≤3 | 4 W 620 | 7.3 | 3.3 | 4.3 |
| 742701121 | 76 | 123 | 195 | 370 | ≤4.5 | 7 W 700 | 9 | 5 | 8 |
| 74270113 | 68 | 126 | 256 | 405 | ≤4.6 | 4 W 620 | 11.5 | 5 | 9 |
| 74270112 | 44 | 75 | 134 | 203 | ≤4.6 | 4 W 620 | 9 | 5 | 8 |
| 74270161 | 25 | 37 | 115 | 136 | ≤4.7 | 3 W 800 | 10 | 5 | 3.7 |
| 74270176 | 38 | 60 | 105 | 170 | ≤4.7 | 7 W 850 | 5 | 5 | 10 |
| 74270106 | 67 | 107 | 272 | 342 | ≤6.5 | 4 W 620 | 13.2 | 7.1 | 12.7 |
| 742701716 | 35 | 100 | 100 | 200 | ≤7.5 | 7 W 380 | 12.7 | 7.9 | 6.35 |
| 7427010 | 79 | 127 | 330 | 513 | ≤7.6 | 4 W 620 | 16.5 | 8 | 13 |
| 7427011 | 94 | 148 | 395 | 574 | ≤7.6 | 4 W 620 | 16.5 | 8 | 15 |
| 742701707 | 40 | 82 | 191 | 305 | ≤9.5 | 7 W 850 | 20 | 10 | 10 |
| 74270117 | 41 | 161 | 215 | 343 | ≤9.6 | 3 W 800 | 14 | 10 | 8 |
| 7427018 | 35 | 50 | 124 | 163 | ≤9.6 | 4 W 1500 | 18.6 | 10.2 | 6 |
| 74270107 | 68 | 160 | 285 | 424 | ≤9.6 | 3 W 800 | 20 | 10 | 10 |
| 74270182 | 55 | 65 | 200 | 265 | ≤10 | 4 W 1500 | 18.6 | 10.2 | 10 |
| 74270181 | 59 | 83 | 237 | 307 | ≤10.3 | 4 W 1500 | 17.5 | 10.7 | 12.7 |
| 74270121 | 30 | 50 | 40 | 70 | ≤10.5 | 4 W 620 | 19 | 11.5 | 8 |
| 74270110 | 47 | 70 | 131 | 195 | ≤11.5 | 4 W 1500 | 16 | 12 | 16 |
| 7427012 | 76 | 148 | 342 | 471 | ≤11.8 | 4 W 620 | 23.5 | 12.6 | 14 |
| 74270118 | 30 | 70 | 100 | 170 | ≤12.3 | 3 W 800 | 21.2 | 12.7 | 6 |
| 74270120 | 47 | 88 | 174 | 290 | ≤12.5 | 4 W 620 | 21 | 13 | 12 |
| 74270119 | 45 | 133 | 187 | 398 | ≤13.3 | 3 W 800 | 22.5 | 13.8 | 6.4 |
| 742701703 | 50 | 125 | 195 | 379 | ≤14.5 | 7 W 380 | 25 | 15 | 12 |
| 7427013 | 72 | 159 | 295 | 428 | ≤15.5 | 3 W 800 | 28 | 16 | 13 |
| 7427014 | 99 | 200 | 411 | 550 | ≤15.5 | 3 W 800 | 28 | 16 | 20 |
| 742701110 | 45 | 152 | 205 | 330 | ≤17.5 | 3 W 800 | 28 | 18 | 7.5 |
| 742701111 | 55 | 155 | 208 | 335 | ≤18.5 | 3 W 800 | 29.5 | 19 | 7.7 |
| 74270104 | 35 | 67 | 133 | 251 | ≤18.5 | 4 W 620 | 31.7 | 19 | 8 |
| 74270115 | 80 | 167 | 221 | 350 | ≤18.5 | 3 W 800 | 31.5 | 19 | 16 |
| 74270151 | 56 | 101 | 207 | 416 | ≤20.4 | 4 W 620 | 34.6 | 20.8 | 12.7 |
| 742701112 | 39 | 127 | 165 | 350 | ≤24.8 | 3 W 800 | 35.6 | 25.4 | 7.5 |
| 7427015 | 54 | 108 | 217 | 399 | ≤26.9 | 4 W 620 | 40.6 | 27.4 | 15 |
| 74270097 | 64 | 133 | 323 | 680 | ≤33.4 | 4 W 620 | 61 | 35.5 | 12.7 |
| 74270191 | 110 | 165 | 390 | 650 | ≤33.4 | 4 W 620 | 61 | 35.5 | 20 |
Manufacturer:Wurth Elektronik
Datasheet:74270106.pdf
