Description

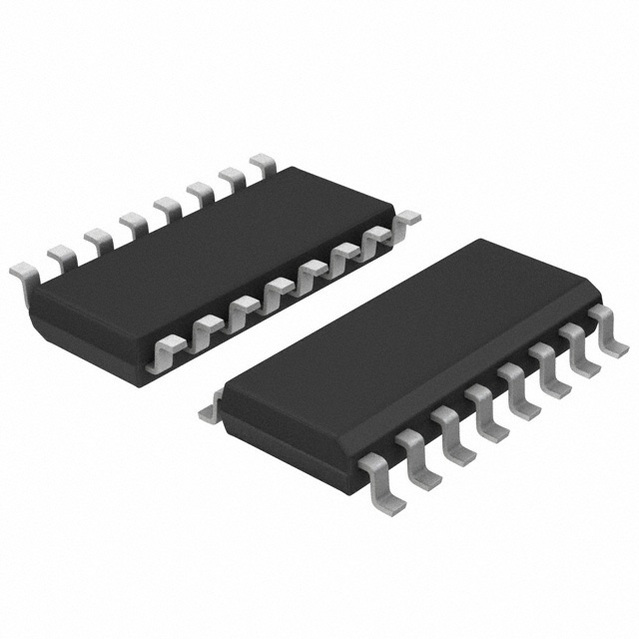

74HC32T Philips / NXP Semiconductors Quad OR GATE 5.0 V (TYP.); -40; +125; 1000nS SMD SO-14
he 74HC32 is identical in pinout to the LS32. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
The 74HC/HCT32 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.
The 74HC/HCT32 provide the 2-input OR function.
Manufacturer:Philips
Datasheet:NXP/74HC_HCT32.pdf
