Description
74HC4050D,653 NXP / Nexperia Buffer & Line Driver 6 V SMT Hex High to-Low Level Shifter Buffer/Converter 6-CH Non-Inverting CMOS 16-Pin SO T/R
Specifications
Manufacturer:Nexperia
Product Category:Buffers & Line Drivers
RoHS
Number of Input Lines:6 Input
Number of Output Lines:6 Output
Polarity:Non-Inverting
High Level Output Current:- 5.2 mA
Low Level Output Current:5.2 mA
Quiescent Current:2 uA
Supply Voltage – Max:6 V
Supply Voltage – Min:2 V
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 125 C
Mounting Style:SMD/SMT

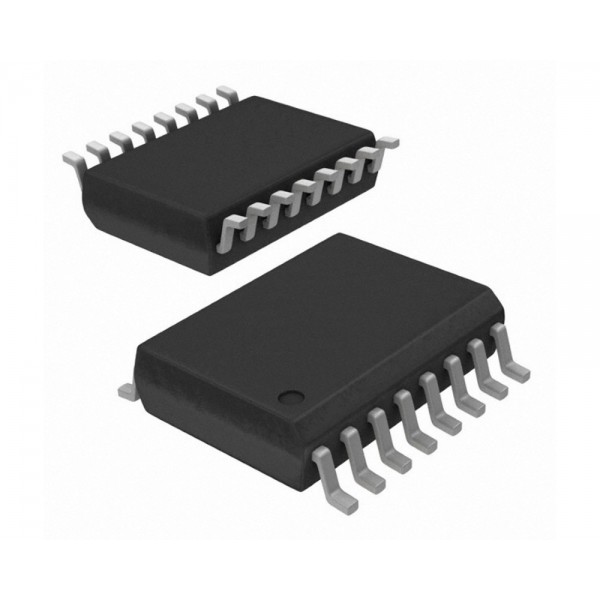

Package / Case:SO-16
Packaging:Cut Tape
Packaging:Reel
Function:Buffer/Converter
Height:1.45 mm (Max)
Length:10 mm (Max)
Technology:CMOS
Width:4 mm (Max)
Brand:Nexperia
Logic Family:HC
Number of Channels:6
Supply Current – Max:2 uA
Input Signal Type:Single-Ended
Operating Supply Voltage:5 V
Product Type:Buffers & Line Drivers
Propagation Delay Time:85 ns at 2 V, 17 ns at 4.5 V, 14 ns at 6 V
Factory Pack Quantity:2500
Subcategory:Logic ICs
Part # Aliases:933714810653
Unit Weight:0.010159 oz
Manufacturer: NXP
MFG Part #: 74HC4050D,653
