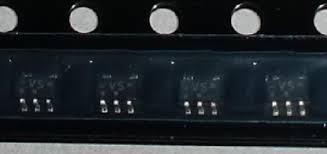

74LVC1G07GW,125 Nexperia Buffer/Driver 1-CH Non-Inverting Open Drain CMOS 5.5V 250mW 5-Pin TSSOP T/R RoHS
Specifications
Manufacturer: Nexperia
Product Category: Buffers & Line Drivers
Number of Input Lines: 1 Input
Number of Output Lines: 1 Output
Polarity: Non-Inverting
Low Level Output Current: 32 mA
Quiescent Current: 100 nA
Supply Voltage – Max: 5.5 V
Supply Voltage – Min: 1.65 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 125 C
Mounting Style: SMD/SMT
Package / Case: TSSOP-5
Packaging: Reel
Packaging: Cut Tape
Brand: Nexperia
Function: Buffer/Driver
Height: 1 mm
Input Signal Type: Single-Ended
Length: 2.25 mm
Logic Family: LVC
Logic Type: Buffer
Number of Channels: 1 Channel
Operating Supply Voltage: 1.65 V to 5.5 V
Output Type: Open Drain
Pd – Power Dissipation: 250 mW
Product Type: Buffers & Line Drivers
Propagation Delay Time: 4.5 ns
Reel:3000
Subcategory: Logic ICs
Supply Current – Max: 200 uA
Technology: CMOS
Width: 1.35 mm
Part # Aliases: 935266681125
Unit Weight: 0.000212 oz
The 74LVC1G07 provides the non-inverting buffer. The output of this device is an open drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of this device in a mixed 3.3 V and 5 V environment. Schmitt-trigger action at all inputs makes the circuit tolerant for slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
Manufacturer: NXP
MFG Part #: 74LVC1G07GW,125
