Description

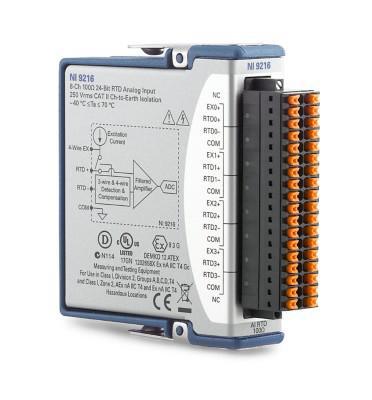

The National Instruments is a resistance temperature detector (RTD) input module. You can configure the NI-9216 for two sample rate modes: high sample rate or high resolution. The NI-9216 is compatible with 3- and 4-wire RTD measurements, and it automatically detects the type of RTD (3-or 4-wire) connected to the channel and configures each channel for the appropriate mode. The module provides per channel current excitation. The NI-9216 features calibration and includes a channel-to-earth ground double isolation barrier for safety, noise immunity, and a high common-mode voltage range.
Features
(8) Differential Analog Input Channels
400 S/s Max Sample Rate
60 or 250 Vrms Ch-Earth Ground Isolation
0.15C Measurement Accuracy
PT100 RTD Supported
D-Sub or Spring Terminal Front Connection
Part Numbers: 785186-01, 783863-01, 783863-02
Manufacturer Part Number: 785186-01
