Description

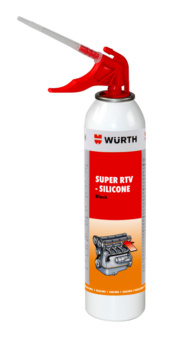

High-quality adhesive and sealing compound for use in the automotive sector.
Excellent resistance to chemicals
Can also be used in critical areas in which the seal comes into contact with various liquids
Outstanding resistance to engine oil and transmission oil, refrigerant and anti-freeze agent
Non-acidic hardening system
Non-corrosive, therefore has no negative impact on electronic components and on lambda probes
Typical applications:
Intake systems / water pumps / oil pumps / oil sumps / camshaft bearing covers / thermostat housings / front covers / gearbox covers / drive axle covers / sunroofs / doors.
Instructions
Optimum adhesion to dry, clean and dust-free surfaces. The old sealant must be removed in full from the surface.
Specifications
Colour
Black
Contents
200 ml
Chemical basis
Neutral crosslinked silicones, oxime-based
Smell/fragrance
Characteristic
Min./max. temperature resistance
-60 to 260 C
Max. short-term temperature resistance
315 C
Range of applications
Front cover
Transmission cover
Camshaft bearing cover
Oil pumps
Oil pans
Sunroof
Thermostat housing
Doors
Water pumps
Density
1.04 g/cm
Min. skin-formation time
5 min
Conditions for skin-formation time
in accordance with ASTM D-4678
Full curing speed
2 mm/d
Fully hardening/curing conditions
23C and 50% relative humidity
Shore A hardness
40
Min. tensile strength
2.2 N/mm2
Conditions for tensile strength
in accordance with ASTM D-412
Max. breaking elongation/conditions
300 % / in accordance with ASTM D-412
Heat conductance ?
0.2 J/(m*s*K)
Heat conductance ? conditions
in accordance with ASTM D-2214/70
Coefficient of thermal expansion
0.0002 1/K
Coefficient of thermal expansion conditions
in accordance with ASTM EB-31
Dielectric strength
16 kV/mm
Dielectric strength conditions
in accordance with ASTM D-149
Relative permittivity
2.8
Conditions for relative permittivity
1 MHz, ASTM D-150
Loss factor
0.002
Loss factor conditions
1 MHz, ASTM D-150
Specific volume resistivity
1000000000000000 Ohm/cm
Conditions for specific volume resistivity
in accordance with ASTM D-257
Features
Very good resistance to chemicals. Suitable for use in critical areas, in which the seal may temporarily be in contact with several fluids. The product shows an excellent resistance against motor and gear oils, refrigerants, and anti-freeze
Acid-free hardening system. Non-corrosive, therefore no negative effects on electronic components or Lambda sensors
High temperature stability. Utilization in the temperature range on machinery and engines possible
Sealant in a compressed air spray can. Easy dosage without auxiliary devices. Optimum handling, which means that an even product application using fine beads is possible
Applications
Optimal adhesion is achieved on clean and dry surfaces. Old sealing materials must be removed completely from the sealing surface
Manufacturer:Wurth Elektronik
Datasheet:Wurth/Label_0893.3211.pdf
