Description

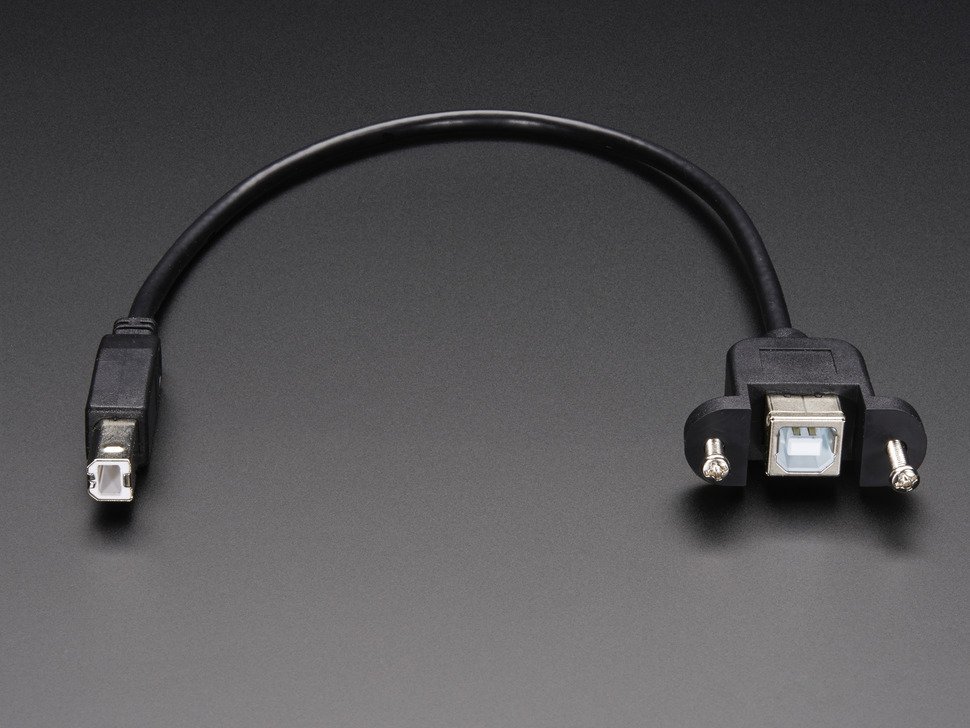

907 Adafruit Panel Mount USB Cable – B Male to B Female Panel Mount RoHS
This handy USB extension cable will make it easy for you to enclose a device that has a B type port. We think this would be most handy when putting an Arduino in a box.
The jack half has two mounting ‘ears’ with M3 screws installed, 1.1″ / 29mm apart. Can be used with box walls 0.125″ to 0.25″ wide. If you have a thinner-walled box, simply swap out the M3 screws for shorter ones. Cable, from connector to connector, is 13″ long.
TECHNICAL DETAILS
Panel mount USB type B socket with USB type B plug at cable end
28 AWG data, 24 AWG power wires
Length: 330mm / 13″
Two M3 mounting screws, 1.1″ / 29mm apart
Panel mount end dimensions: 38mm x 14.5mm / 1.5″ x 0.57″
Manufacturer: Electronic Components
MFG Part #: 907
