Description

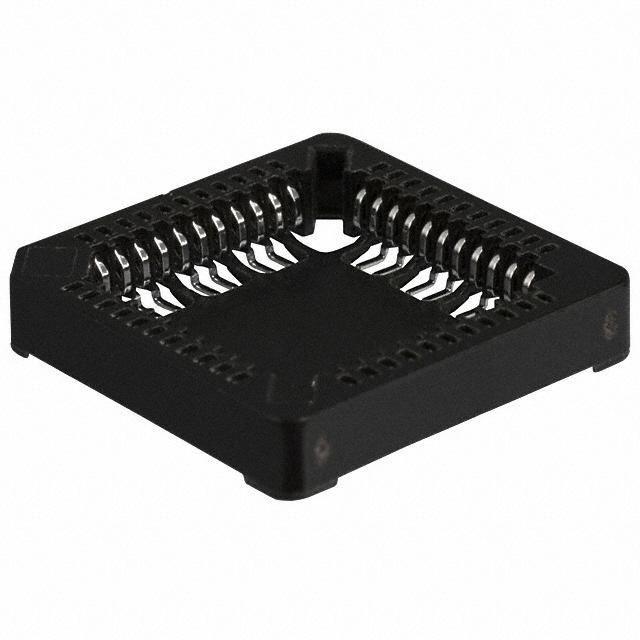

ASSMANN A-CCS44-Z-SM-R Socket 44 Pin 1.27 mm Pitch Closed Frame Surface Mount Tin PLCC
Assman a leader in computer and Network Peripheral products, offers a variety of USB cables and Adapters.The Assmann Portfolio ranges from:
The standard USB A to B cable assembly
USB 2.0 Hi-speed Cables
Various USB Adapters
A range of USB mainboard Adapters on slot brackets.
The A-CCS44-Z-SM-R is a 44 Position Surface Mount PLCC Socket. This Low profile SMT Chip-carrier has a 1.27mm pitch, and contacts that are phosphors bronze and tin.
Type PLCC
Number of Positions or Pins (Grid) 44 (4 x 11)
Pitch – Mating 0.050″ (1.27mm)
Contact Finish – Mating Tin
Contact Finish Thickness – Mating 150µin (3.81µm)
Contact Material – Mating Phosphor Bronze
Mounting Type Surface Mount
Features Closed Frame
Termination Solder
Pitch – Post 0.050″ (1.27mm)
Contact Finish – Post Tin
Contact Finish Thickness – Post 150µin (3.81µm)
Contact Material – Post Phosphor Bronze
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature -55°C ~ 105°C
Termination Post Length 0.130″ (3.30mm)
Material Flammability Rating UL94 V-0
Current Rating 1A
Contact Resistance 30 mOhm
Warehouse:Hong Kong
Manufacturer:Electronic Components
Datasheet:A-CCS44-Z-SM-R_REV00.pdf
